WSS (Weight Sensing System) sensor, component description - GF91.60-P-4036GZ

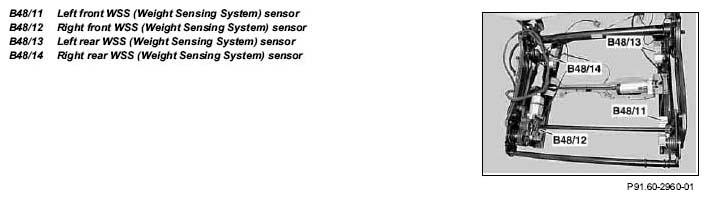

Fig 1: Identifying WSS (Weight Sensing System) Sensor Component

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

The WSS (Weight Sensing System) sensors,

• left front WSS sensor (Weight Sensing System) (B48/11),
• right front WSS sensor (Weight Sensing System) (B48/12),
• left rear WSS sensor (Weight Sensing System) (B48/13) and
• right rear WSS (Weight Sensing System) sensor (B48/14),

are located in the front passenger seat frame.

The sensors record the applied weight. The recorded values are sent to the WSS (Weight Sensing System) control unit (N2/13) and called on and evaluated for the triggering of the restraint system.
