Power window switch, component description - GF72.29-P-6040GZ
MODEL 164.1/8

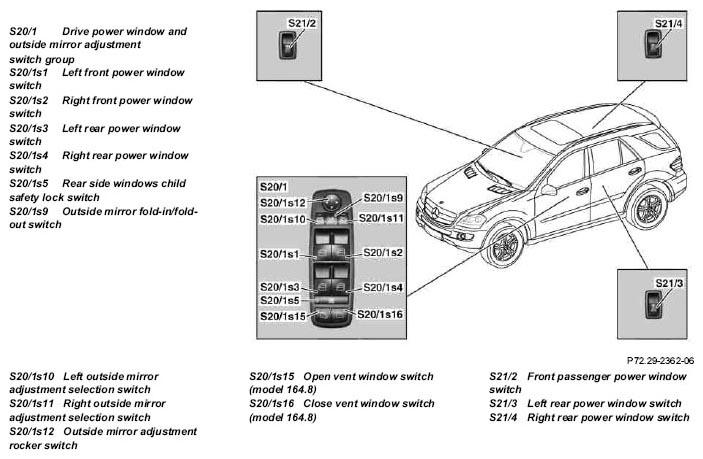

Shown on model 164.1
Location
The power window switches are installed in the corresponding armrest in the door paneling
Function
All windows can be operated from the driver via the driver power window and outside mirror adjustment switch group. The operation of the rear driver window can be interrupted by the child safety lock switch. This is indicated by the child safety lock indicator lamp. In addition, the rear vent window (model 164.8) can be opened and closed via the driver power and outside mirror adjustment switch group
Only the associated window can be operated via the front passenger and rear passenger power window switch The manual and automatic raising/lowering feature can be operated from all control points
The driver power window and outside mirror adjustment switch group is read in via switching bus.
On vehicles with code (872) Electrically heated left and right rear seats, the rear power window switches are also read in by the switching bus
