Camshaft Hall sensor - location/task/design/function - GF07.04-P-4117HA
ENGINE 113.990 /991 /993
ENGINE 113.992 /995 up to Model Year 8
| Camshaft Hall sensor - position | GF07.04-P-4117-01AM | ||
| Camshaft Hall sensor - task | Contactless measurement of the position of the camshaft over a segment on the camshaft gear. The signal from the camshaft Hall sensor allows the ME-SFI [ME] control unit (N3/10) to recognize the ignition TDC position for cylinder 1. The rapid start function of the engine is made possible on the engine stopped condition. | ||

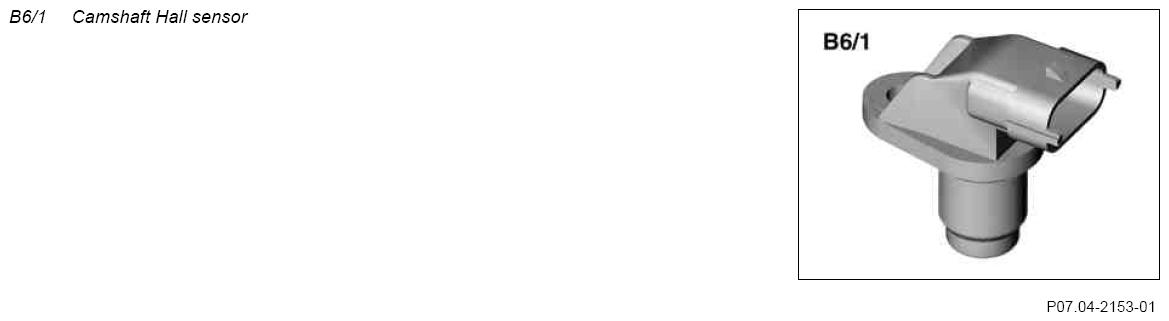

| Camshaft Hall sensor - design | Hall sensor in plastic housing with 3-pin plug connection. Pin 1: Sensor mass Pin 2: Hall sensor signal Pin 3: Power supply (terminal 87) |
||
| Camshaft Hall sensor - function | GF07.04-P-4117-02HA |
