Remove/install front seat backrest frame - AR91.10-P-3331TA
MODEL 211.0/2/6 as of 1.7.04
| Remove/install | |||
| 1 | Remove outside paneling on front seat frame | AR91.10-P-1200TC | |
| 2 | Remove inside paneling on front seat frame | AR91.10-P-1200TD | |
| 3 | Removing front seat backrest upholstery | Front seat without code (404) Left multicontour seat or without code (405) Right multicontour seat or without code (433) Left dynamic seat, incl. multicontour seat or without code (434) Right dynamic seat, incl. multicontour seat |
AR91.10-P-1090TC |
| Front seat with code (404) Left multicontour seat or code (405) Right multicontour seat or code (433) Left dynamic seat, incl. multicontour seat or code (434) Right dynamic seat, incl. multicontour seat |
AR91.10-P-1090TD | ||

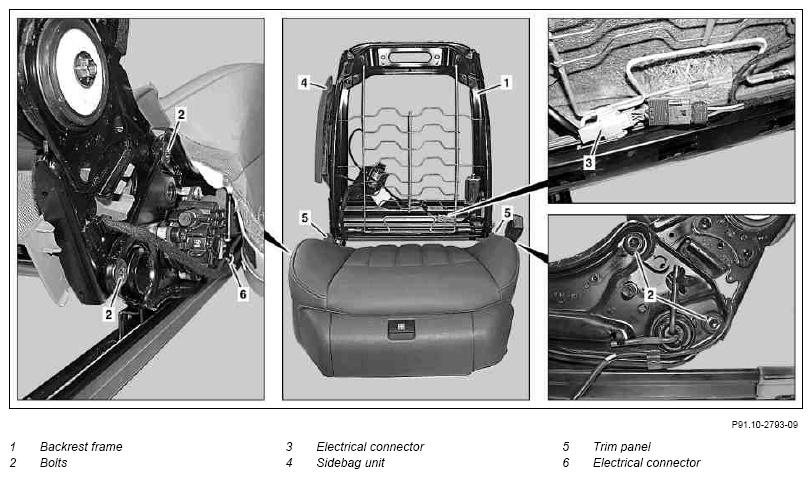

| 4 | Unclip panelings (5) and remove | ||
| 5 | Disconnect electrical connectors (3, 6) | ||

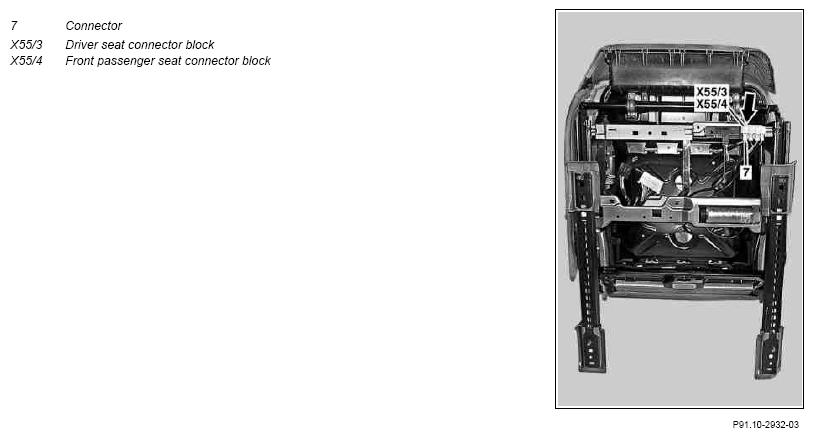

| 6 | Unlock connector (7) using a suitable screwdriver from the driver seat connector block (X55/3) or front passenger seat connector block (X55/4) (arrow) and detach | ||
| 7 | Expose electric wiring harness on backrest frame (1) | ||
| 8 | Remove sidebag (4) | AR91.60-P-0695T | |
| 9 | Remove bolts (2) on left and right and remove backrest frame (1) | *BA91.10-P-1025-01A | |
| 10 | Install in the reverse order |
FRONT SEATS
| Number | Designation | Model 211 | |
|---|---|---|---|
| BA91.10-P-1025-01A | Seat backrest to seat frame | Nm | 43 |
