PRE-SAFE, networking of components - GF91.40-P-0001-02T

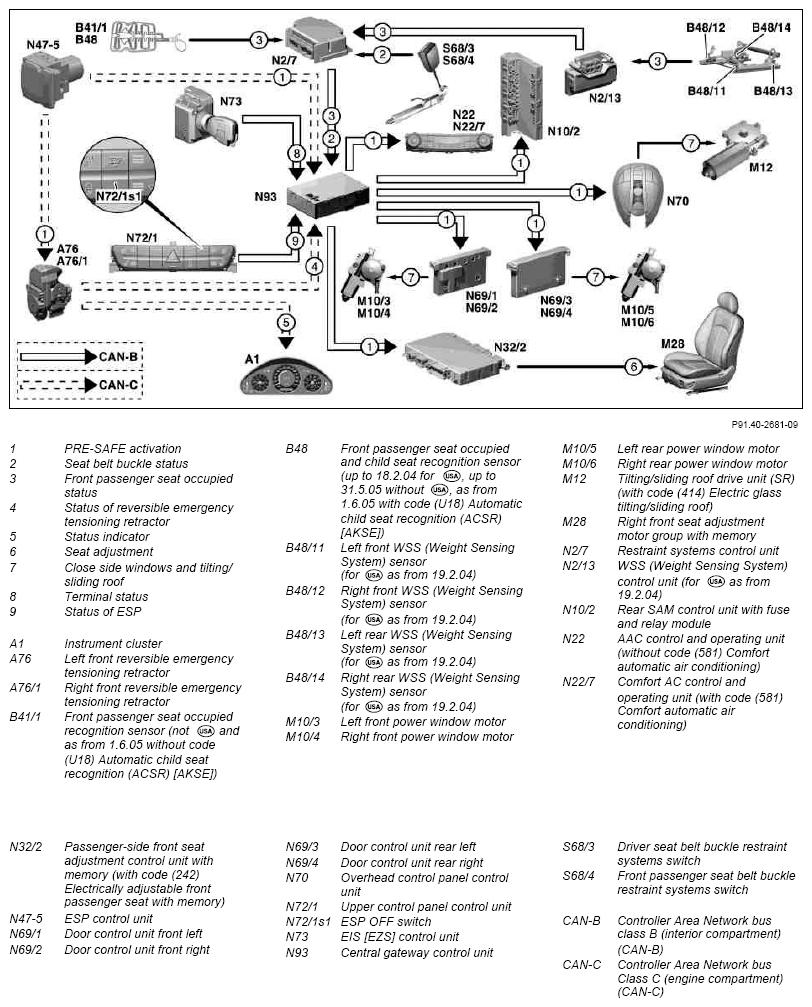

Fig 1: PRE-SAFE Networking Of Components

G07266047

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
