Common Rail Diesel Injection (CDI), control unit input signals - GF07.16-P-0001-06T

Engine 642.920/921

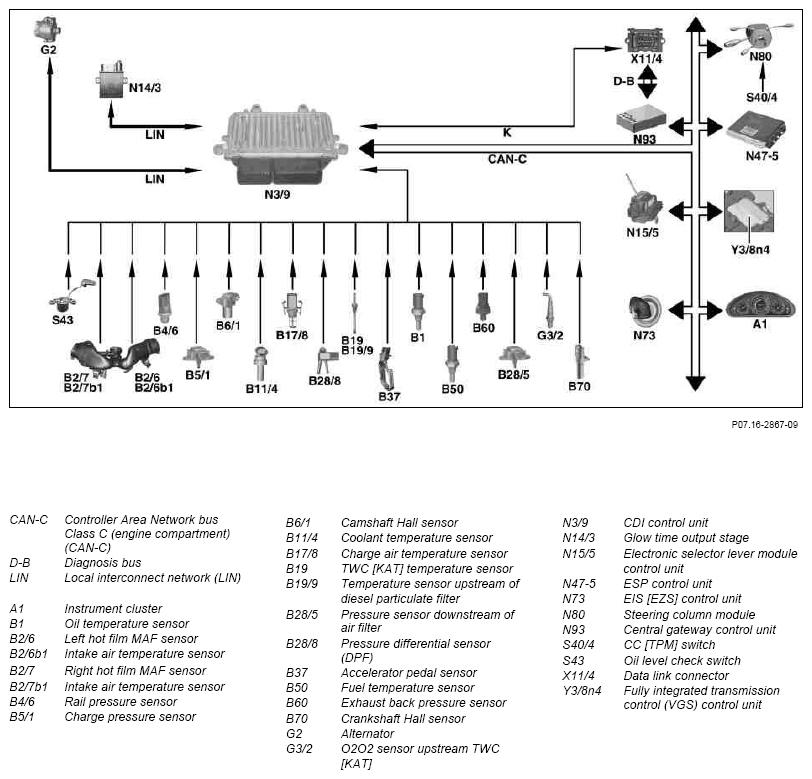

Fig 1: Common Rail Diesel Injection Control Unit Input Signals (1 Of 2)
G07249029Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown on model 211.022 with engine OM 642.920, except Code (494) USA version, with Code (474) Particulate filter, with transmission 722.9

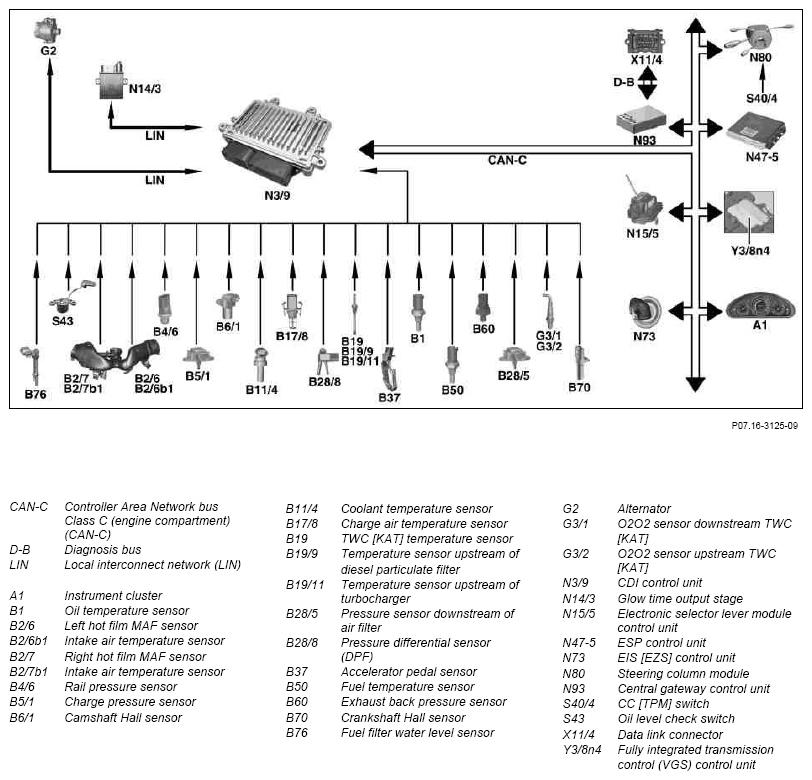

Fig 2: Common Rail Diesel Injection Control Unit Input Signals (2 Of 2)
G07249030Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown on model 211.022 with OM 642.920, with Code (494) USA version, with transmission 722.9
