Telephone interface, location/task/design/function - GF82.70-P-3107T

Model 211.0/2

Shown on model 211.0

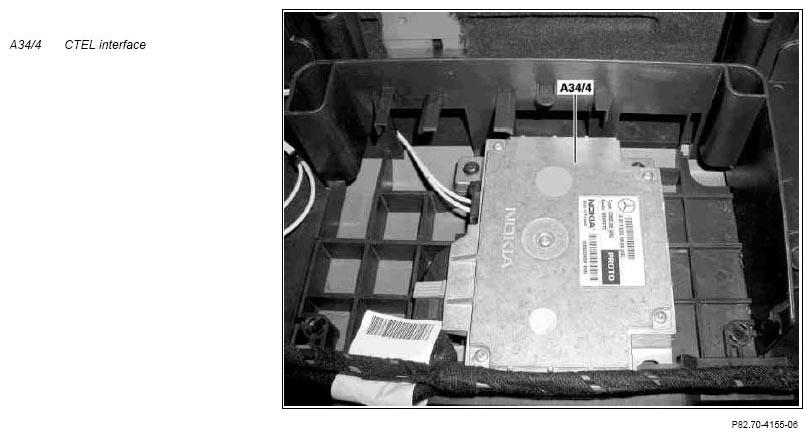

Fig 1: Identifying CTEL Interface

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Telephone interface, location	The telephone interface (A34/4) is in the luggage compartment base plate directly beneath the rear bench seat.
Telephone interface, location	Model 211.2	GF82.70-P-3107-01T
Telephone interface, purpose	The telephone interface (A34/4) makes it possible for the CTEL (A34/6) to communicate with the MOST. The CTEL (A34/6) is charged using the telephone interface (A34/4). It establishes the antenna connection to the vehicle.
Telephone interface, design	MOST interface Signal processing and conversion MOST wake-up signal input
Telephone interface, function		GF82.70-P-3107-02T
