Media interface control unit, component description - GF82.60-P-5000TM

MODEL 211, 219 with CODE (518) Media interface as of model year 09/YoM 08

Illustrated on model 219

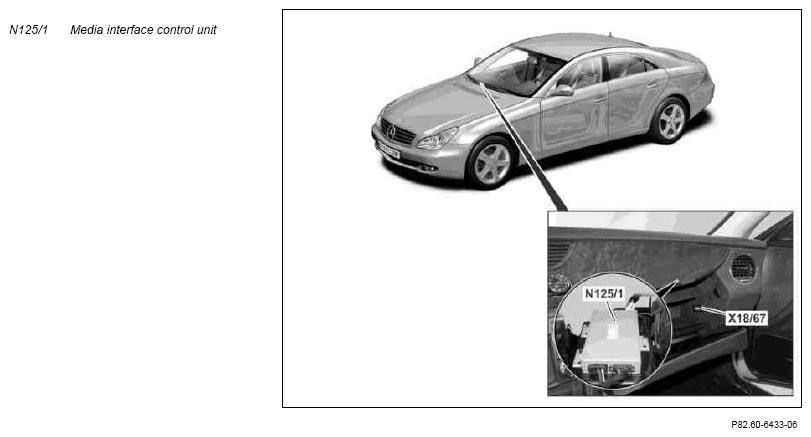

Location

The media interface control unit is located behind the glove box in the dashboard.

Depending on the equipment version, one of the following audio devices is installed (hereinafter called "Audio equipment"):

• Radio (A2), with code 510 Audio 20 with CD changer
• Radio control panel and navigation unit (A2/56), with code 525 MB Audio 50 APS radio or with code 511 Audio 50 APS with DVD changer
• COMAND operating, display and controller unit (A40/3), with code 528 COMAND with DVD changer, with code 527 COMAND APS with single DVD drive (with navigation) or with code 512 COMAND APS with DVD changer

Task

• Receive signals
• Transmitting signals

Receive signals

• Direct lines
• Media Oriented System Transport (MOST)

Direct lines

• Power supply, circuit 31 and circuit 30 over G+H connector
• Audio signals and data from the electrical media interface connector 1 (X18/67) via the Mitsumi CAM62 connector
• Electronic wake-up for MOST over G+H connector

MOST

• Control signal from the "audio equipment" via MOST 2+0 connector

Transmitting signals

• Direct lines
• MOST

Direct lines

• General power supply to the media interface connector and for Universal Serial Bus (USB) via the Mitsumi CAM62 connector
• Control signal to media interface connector over Mitsumi CAM62 connector

MOST

• Audio signals and data to "audio equipment" via MOST 2+0 connector
