Refrigerant pressure and temperature sensor location/task/function - GF83.40-P-2171P
WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2007 Mercedes-Benz C350, 2007 Mercedes-Benz C280, 2007 Mercedes-Benz C230, 2006 Mercedes-Benz C55, and 2006 Mercedes-Benz C350. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 203.0 /2 /7 with CODE (580) Air conditioning (or Tempmatic for USA) with CODE (580) Automatic air conditioning with CODE (581) Automatic air conditioning with CODE (581) Comfort automatic air conditioning

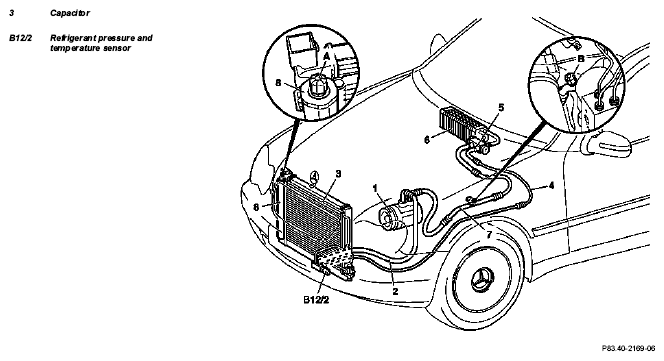

| Refrigerant pressure and temperature sensor, position | The refrigerant pressure and temperature sensor (B12/2) is located at the bottom of the condenser (3) in the engine compartment. | ||
| Refrigerant pressure and temperature sensor, task | The refrigerant pressure and temperature sensor (B12/2) records the refrigerant pressure and refrigerant temperature and passes on these values to the AAC [KLA] control and operating unit or to the comfort AAC [KLA] control and operating unit. | ||
| Refrigerant pressure and temperature sensor, function | GF83.40-P-2171-01P |
