Heating push-button control unit, location/task - GF83.20-P-2120PP

WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2007 Mercedes-Benz C350, 2007 Mercedes-Benz C280, 2007 Mercedes-Benz C230, 2006 Mercedes-Benz C55, and 2006 Mercedes-Benz C350. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 203.0 /2 /7 up to 23.4.04 except CODE (580) Air conditioning (or Tempmatic for USA) except CODE (580) Automatic air conditioning except CODE (581) Automatic air conditioning except CODE (581) Comfort automatic air conditioning

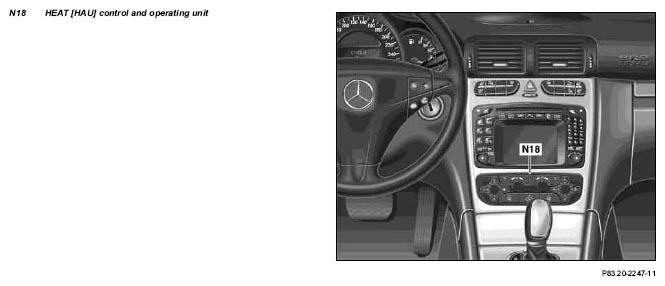

Fig 1: Identifying HEAT (HAU) Control And Operating Unit
G04737939
  Heating push-button control unit, location The HEAT control and operating unit (N18) is in the center console.
  Heating push-button control unit, task   GF83.20-P-2120-02PP
