Overhead control panel control module, location/task/design - GF82.20-P-4110A
WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2007 Mercedes-Benz C350, 2007 Mercedes-Benz C280, 2007 Mercedes-Benz C230, 2006 Mercedes-Benz C55, and 2006 Mercedes-Benz C350. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 203.0 /2 /7
Illustrated on Model 203.0

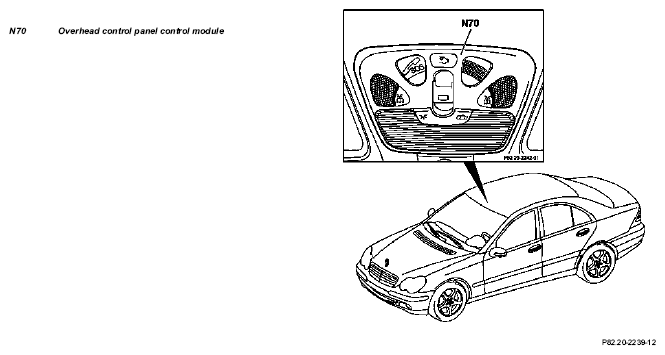

| Overhead control panel control module, location | The overhead control panel control module (N70) is located at the front in the headliner in the area of the inside rearview mirror. | ||
| Overhead control panel control module, purpose | GF82.20-P-4101-02A | ||
| Design of overhead control panel control module | GF82.20-P-4101-03B |
