Pressure sensor position - GF07.04-P-5014-01GA

Engine 111 USA ONLY

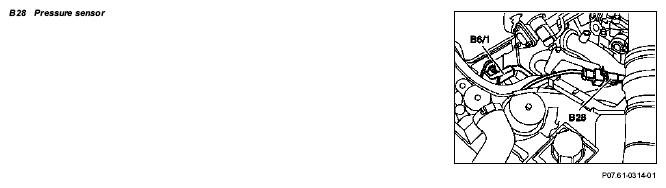

Fig 1: Identifying Pressure Sensor - Engine 111
G04736521
