Remove/install injection system control unit - AR07.08-P-7008QP

ENGINE 271 in MODELS 203, 209, 211

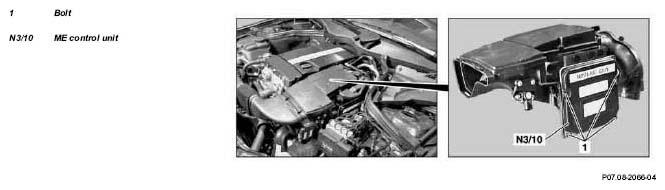

Fig 1: Identifying ME Control Unit And Bolt - Engine 271

MODIFICATION NOTES

16.5.06

"Disconnect/connect ground line on battery" removed

	Remove/install
	Notes on avoiding damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Open engine hood	Model 203	AR88.40-P-1000P
		Model 209	AR88.40-P-1000Q
		Model 211	AR88.40-P-1000T
3	Remove air filter housing		AR09.10-P-1150Q
4	Loosen bolts (1) and remove ME control unit (N3/10)
5	Install in the reverse order
6	Read out fault memory and erase Stored faults which may be caused by assembly work, test work, removed lines or a simulation, must be processed and erased in the fault memories after completing the work.
	Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A
		STAR DIAGNOSIS diagnosis system	*WH58.30-Z-1048-13A

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1048-13A	STAR DIAGNOSIS diagnosis system, Compact Passenger Car	6511 1801 00
