Location / task / function of position indicator - GF27.19-P-5129T: Notes

TRANSMISSION 722.6 in MODEL 211 (except 211.076) up to 31.8.03

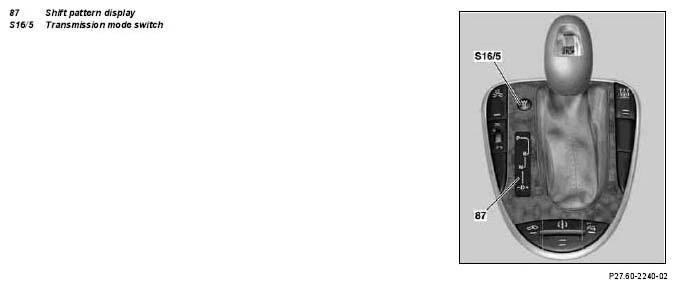

Fig 1: Identifying Shift Pattern Display And Transmission Mode Switch
G04983168
  Position display, location The position display (shift pattern display (87)) is housed in the cover of the center shifter console. In addition a gear display and transmission mode display is located in the instrument cluster (A1).
  Position display, task   GF27.19-P-5129-02P
  Position display, function   GF27.19-P-5129-03Q
