Rack-and-pinion steering play compensator, location/ task/ function - GF46.20-P-1100T: Notes

MODEL 211

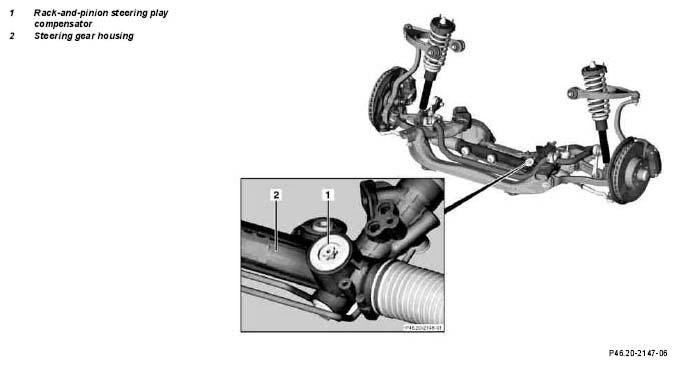

Fig 1: Identifying Rack-And-Pinion Steering Play Compensator Location

	Rack-and-pinion steering play compensator, location	The rack-and-pinion steering play compensator (1) is located in the steering gear housing (2) opposite the drive pinion.
	Rack-and-pinion steering play compensator, task	Guarantees that the drive pinion and gear rack mesh without play.
	Rack-and-pinion steering play compensator, function		GF46.20-P-1100-03T
