Heated seats/seat ventilation control unit, location/task - GF91.30-P-3005T: Notes

MODEL 211.0 /2 /6 up to 31.5.05 with CODE (401) Front deluxe seats, incl. seat heating and seat ventilation with CODE (872) Electrically heated left and right rear seats with CODE (873) Heated left and right front seats

MODEL 211.0 /2 /6 as of 1.6.05 with CODE (401) Front deluxe seats, incl. seat heating and seat ventilation with CODE (872) Electrically heated left and right rear seats

MODEL 211.0 /2 /6 as of 1.6.04 with CODE (443) Steering wheel heater

Shown on Model 211.0

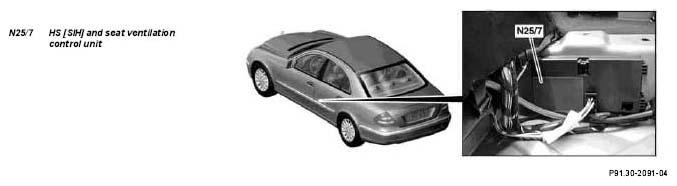

Fig 1: Identifying HS And Seat Ventilation Control Unit
G04986991
  Heated seats/seat ventilation control unit, location The HS [SIH] and seat ventilation control unit (N25/7) is located on the cross member under the driver seat.
  Heated seats/seat ventilation control unit, task   GF91.30-P-3005-01T
