Rack-and-pinion steering damper, location/ task/ function - GF46.20-P-1200T: Notes

MODEL 211

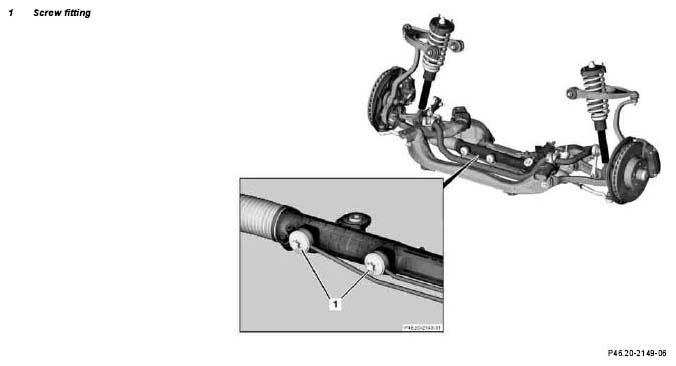

Fig 1: Identifying Rack-And-Pinion Steering Damper Screw Fitting Location

	Rack-and-pinion steering damper, location	One steering damper is integrated in each screw fitting (1).
	Rack-and-pinion steering damper, task	The task of the integrated steering dampers is to cushion the forces and shocks transmitted from the road surface via the steering linkage.
	Rack-and-pinion steering damper, function		GF46.20-P-1200-02T
