ME fuel rail, location/task/design/function - GF07.61-P-3101AM: Notes
ENGINE 113.990 /991 /992 /993 /995

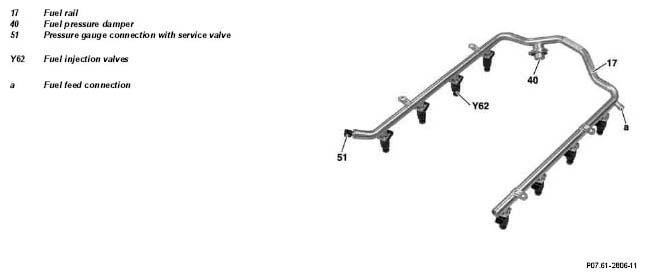

| ME-SFI fuel rail, location | GF07.61-P-3101-01AM | ||
| ME-SFI fuel rail, task | The fuel distribution rail supplies fuel to injection valves equally under all operating conditions and simultaneously reduces fluctuations in fuel pressure. | ||
| ME-SFI fuel rail, design | The injection valves are inserted in the fuel distribution rail with O-rings and retaining clamps. Moreover, the fuel pressure damper and the pressure gauge connection with a service valve are integrated in the fuel distribution rail. | ||
| ME fuel rail, function | An adequate quantity of fuel is delivered to each injection valve. At the same time, the fuel pressure damper reduces fluctuations in fuel pressure. The pressure gauge connection with a service valve is used for testing fuel pressure and for releasing the pressure when carrying out assembly operations. |
