CDI overheating protection, function - GF07.16-P-3015IC
ENGINE 647.961 in MODEL 211
ENGINE 648.960 in MODEL 220
ENGINE 648.961 in MODEL 211

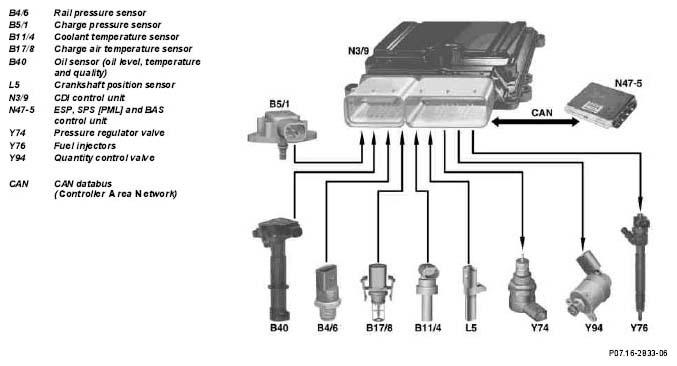

The task of overheating protection is to prevent engine damage caused by thermal overloading.
If the coolant temperature and/or the charge air temperature is too high, the injection quantity is reduced by the CDI control unit according to a performance map.
The following information is processed in the CDI control unit for this purpose:
- Charge air temperature
- Charge air pressure
- Coolant temperature
- Engine speed
- Vehicle speed
If the signal from the coolant temperature sensor is missing, the oil temperature signal from the oil sensor is used (for emergency mode).
| Component description for the fuel injectors | Y76 | GF07.03-P-6120IC | |
| Component description for the crankshaft position sensor | L5 | GF07.04-P-6010IC | |
| Component description for the coolant temperature sensor | B11/4 | GF07.04-P-6040IC | |
| Component description for the charge air temperature sensor | B17/8 | GF07.04-P-6050IC | |
| Component description for the boost pressure sensor | B5/1 | GF07.04-P-6051IC | |
| Component description for the rail pressure sensor | B4/6 | GF07.04-P-6210IC | |
| Component description for the quantity control valve | Y94 | GF07.05-P-6010IC | |
| Component description for the pressure regulator valve | Y74 | GF07.05-P-6020IC | |
| Component description for the CDI control unit | N3/9 | GF07.16-P-6000IC | |
| Component description for the oil sensor | B40 | GF18.40-P-2000IC |
