Engine Does Not Start / Check Engine Light On (LI54.18-P-047534)

Publication date: 2009-07-28
Reference number: LI54.18-P-047534
Supersedes refnos: 54.18/145A

ENGINE DOES NOT START / CHECK ENGINE LIGHT ON

TECHNICAL SERVICE BULLETIN

Reference Number(s): LI54.18-P-047534 Version 1 (P-B-54.18/145A, June 2, 2009)

Mercedes-Benz:	Model 170.465; Model 203.061/064/081/084/261/264/281/284/764; Model 209.365/465; Model 211.065/082/265/282, Equipped with Engine M112, Up to Engine Number 112931986433
Design Group:	54.18 Cable harnesses
Reason For Change:

COMPLAINT

Engine occasionally does not start with the check engine light on

CAUSE

Engine wiring harness lying against the screw head of the cylinder head cover in the area of wiring of cylinders 4, 5 and 6 (Fig 1) causing a misfire condition in these cylinders.

ATTACHMENTS

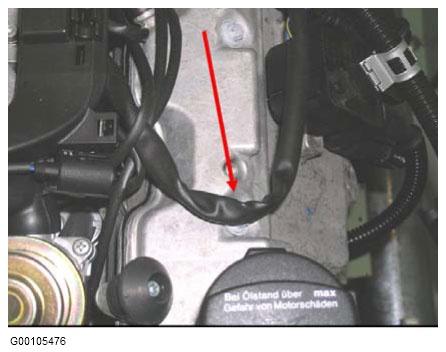

Fig 1: Engine Wiring Harness Lying Against Screw Head Of Cylinder Head Cover

REMEDY

To remedy, follow the below steps.

Verify fault code P2043, P2045, P2047, P2049, P2050, P2052, P2054, P2056 and repair engine wiring harness as necessary.
Secure engine wiring harness to cable rail using cable ties (Fig 2) to prevent contact with the screw head.

NOTE: The following allowable labor operations should be used when submitting a warranty claim for this repair. This information has been generated on June 2, 2009. Please refer to Netstar -> Star TekInfo -> Star Time for the most current labor time allowance.

ATTACHMENTS

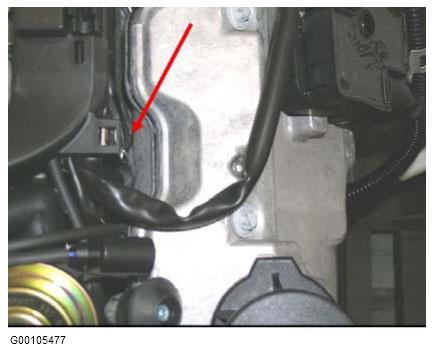

Fig 2: Engine Wiring Harness Secured To Cable Rail

SYMPTOMS

Power generation / Engine diagnosis / Engine management / Lights up / Engine management indicator lamp /

Engine start/stop / Power generation / Engine management / Does not start /

CONTROL UNIT/FAULT CODE

Control unit	Fault code	Fault text
ME2-SFI-Motor electronics 2. 8, ME-SFI 2.8-Motor electronics 2.8 (ME28)	P2043	Misfiring (See currently valid STIP)(P0300)
ME2-SFI-Motor electronics 2. 8, ME-SFI 2.8-Motor electronics 2.8 (ME28)	P2045	Misfiring of cylinder 5 (See currently valid STIP)(P0305) ([all_GF_ SD])
ME2-SFI-Motor electronics 2. 8, ME-SFI 2.8-Motor electronics 2.8 (ME28)	P2045	Misfiring of cylinder 4 (See currently valid STIP)(P0304) ([M112K* ])
ME2-SFI-Motor electronics 2. 8, ME-SFI 2.8-Motor electronics 2.8 (ME28)	P2052	Misfiring of cylinder 4, damages TWC (See currently valid STIP) (P0304) ([M112K*])
ME2-SFI-Motor electronics 2. 8, ME-SFI 2.8-Motor electronics 2.8 (ME28)	P2049	Misfiring of cylinder 5 (See currently valid STIP)(P0305) ([M112*])
ME2-SFI-Motor electronics 2. 8, ME-SFI 2.8-Motor electronics 2.8 (ME28)	P2045	Misfiring of cylinder 4 (See currently valid STIP)(P0304) ([M112*])
ME2-SFI-Motor electronics 2. 8, ME-SFI 2.8-Motor electronics 2.8 (ME28)	P2052	Misfiring of cylinder 4, damages TWC (See currently valid STIP) (P0304) ([M112*])
ME2-SFI-Motor electronics 2. 8, ME-SFI 2.8-Motor electronics 2.8 (ME28)	P2056	Misfiring of cylinder 5, damages TWC (See currently valid STIP) (P0305) ([M112K*])
ME2-SFI-Motor electronics 2. 8, ME-SFI 2.8-Motor electronics 2.8 (ME28)	P2056	Misfiring of cylinder 5, damages TWC (See currently valid STIP) (P0305) ([M112*])
ME2-SFI-Motor electronics 2. 8, ME-SFI 2.8-Motor electronics 2.8 (ME28)	P2049	Misfiring of cylinder 3 (See currently valid STIP)(P0303) ([all_GF_ SD])
ME2-SFI-Motor electronics 2. 8, ME-SFI 2.8-Motor electronics 2.8 (ME28)	P2050	Misfiring, Damages TWC (See currently valid STIP)(P0300) ([all_ GF_SD])
ME2-SFI-Motor electronics 2. 8, ME-SFI 2.8-Motor electronics 2.8 (ME28)	P2056	Misfiring of cylinder 3, damages TWC (See currently valid STIP) (P0303) ([all_GF_SD])
ME2-SFI-Motor electronics 2. 8, ME-SFI 2.8-Motor electronics 2.8 (ME28)	P2054	Misfiring of cylinder 6, damages TWC (See currently valid STIP) (P0306) ([M112*])
ME2-SFI-Motor electronics 2. 8, ME-SFI 2.8-Motor electronics 2.8 (ME28)	P2054	Misfiring of cylinder 2, damages TWC (See currently valid STIP) (P0302) ([all_GF_SD])
ME2-SFI-Motor electronics 2. 8, ME-SFI 2.8-Motor electronics 2.8 (ME28)	P2043	Misfiring (See currently valid STIP)(P0300) ([all_GF_SD])
ME2-SFI-Motor electronics 2. 8, ME-SFI 2.8-Motor electronics 2.8 (ME28)	P2054	Misfiring of cylinder 6, damages TWC (See currently valid STIP) (P0306) ([M112K*])
ME2-SFI-Motor electronics 2. 8, ME-SFI 2.8-Motor electronics 2.8 (ME28)	P2052	Misfiring of cylinder 5, damages TWC (See currently valid STIP) (P0305) ([all_GF_SD])
ME2-SFI-Motor electronics 2. 8, ME-SFI 2.8-Motor electronics 2.8 (ME28)	P2050	Misfiring, Damages TWC (See currently valid STIP)(P0300)
ME2-SFI-Motor electronics 2. 8, ME-SFI 2.8-Motor electronics 2.8 (ME28)	P2049	Misfiring of cylinder 5 (See currently valid STIP)(P0305) ([M112K* ])

WORK UNITS

Op. no.	Operation text	Time	Damage code	Note
54-1011	SHORT TEST, PERFORM	0.3 hrs.	59522 22	G3, P1, P2, P4, P6, P7, P8, P9, Q2, Q4, S1, S4, T1, T4, U1, U4
54-7943	ELECTRICAL WIRING HARNESS FOR(SPECIFY), REPAIR	0.5 hrs. *		G3, P1, P2, P4, P6, P7, P8, P9, Q2, Q4, S1, S4, T1, T4, U1, U4 * Maximum time allowed with a separate time punch. Ensure that punches are labeled as NON time.
