Regulating valve pressure regulating valve, location / task /function - GF27.60-P-5133G: Notes

TRANSMISSION 722.6

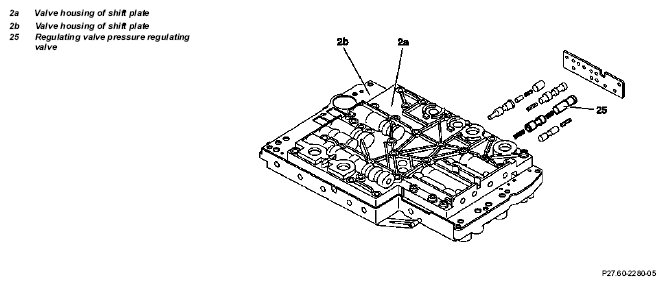

Fig 1: Locating Regulating Valve Pressure Regulating Valve

	Regulating valve pressure regulating valve, location	In the valve housing of shift plate (2b).
	Regulating valve pressure regulating valve, task	Controls the regulating valve pressure.
	Regulating valve pressure regulating valve, function		GF27.60-P-5133-04G
