Service Campaign 2003090005 - Flashing Of Engine Control Module (N3/10) (2003090005)
Publication date: 2004-03-05Reference number: 2003090005
SERVICE CAMPAIGN 2003090005 - FLASHING OF ENGINE CONTROL MODULE (N3/10)
SERVICE CAMPAIGN BULLETIN
Reference Number(s): 2003090005, Date of Issue:
March 5, 2004
| MERCEDES-BENZ: | Models 203.065/170.466 |
| GROUP: | 00 OF SERVICE INFORMATION BINDER |
| GROUP: | I OF INFORMATION - PARTS & ACCESSORIES BINDER |
SUBJECT
MODELS 203.065/170.466
FLASHING OF ENGINE CONTROL MODULE (N3/10)
SERVICE INFORMATION

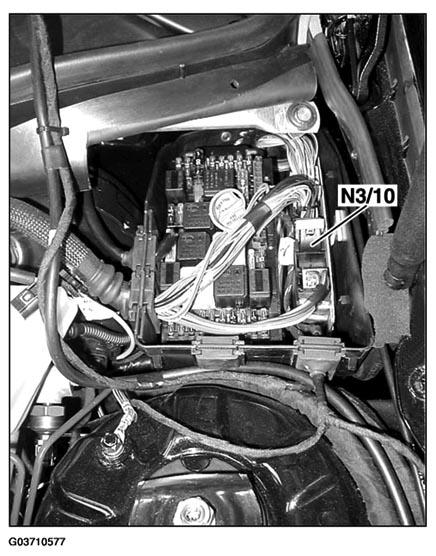

This Service Campaign has been initiated because DCAG has determined that on certain mentioned vehicles (see VIN list below) the engine control module (N3/10, Fig 1 ) may have been flashed incorrectly, thus affecting engine emissions.

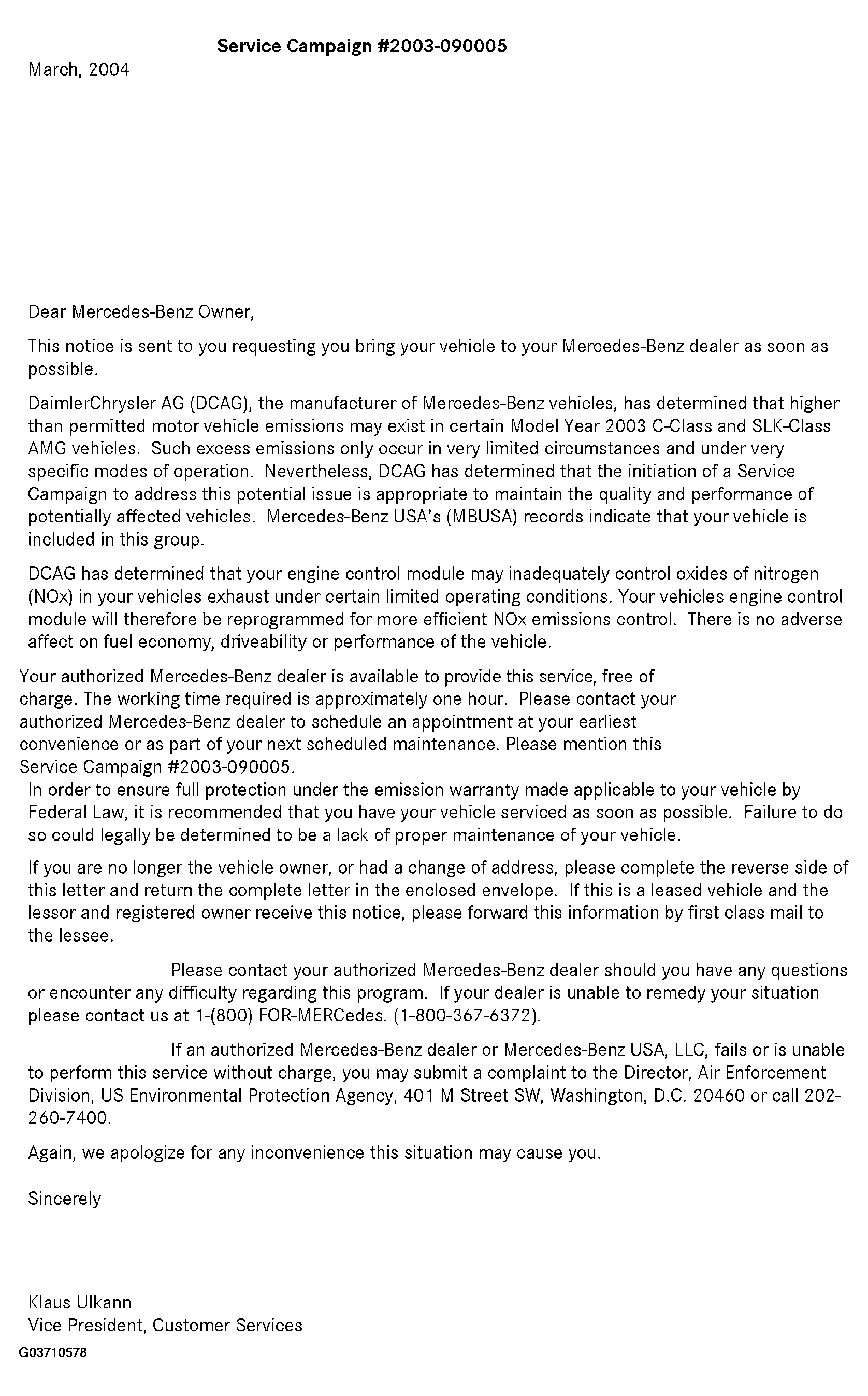

Attached is a sample copy of a letter which owners of the affected vehicles will receive.
Please review the Affected Serial Number Range table located below, only vehicles within this range are affected by this Service Campaign.
EFFECTIVE SERIAL NUMBER RANGE
EFFECTIVE SERIAL NUMBER RANGE
| Model | Chassis End Number | |
|---|---|---|
| From | To | |
| 170.466 | F264183 | F278338 |
| 203.065 | F282364 | F336081 |
PROCEDURE
- Prior to performing this Service Campaign, please check VMI in order to determine if the vehicle is involved in this campaign or if the campaign has been performed.
- Pre flash requirements:
Please use SDFlash release no. 0004488102/0007, DAS-Version: 02/04 CD to perform this campaign.
- Perform ME-SFI control module flashing (please refer to star bulletin: S-B-07.61/27a
for flashing procedure).NOTE: Some screen menus may vary slightly.
- Perform SCN coding after completing flashing procedure (please refer to the following star bulletin: S-SI-07.08/001 ).
WARRANTY INFORMATION
Operation: Engine Control Module, Flash (02-3907)
WARRANTY INFORMATION
| Damage Code | Operation Number | Labor Time (hrs.) | Model Indicator(s) |
|---|---|---|---|
| 54950 27 8 | 02-3907 | .6 hrs. | P3, G4 |
