Fuel injector, function - GF07.03-P-5004-02KE

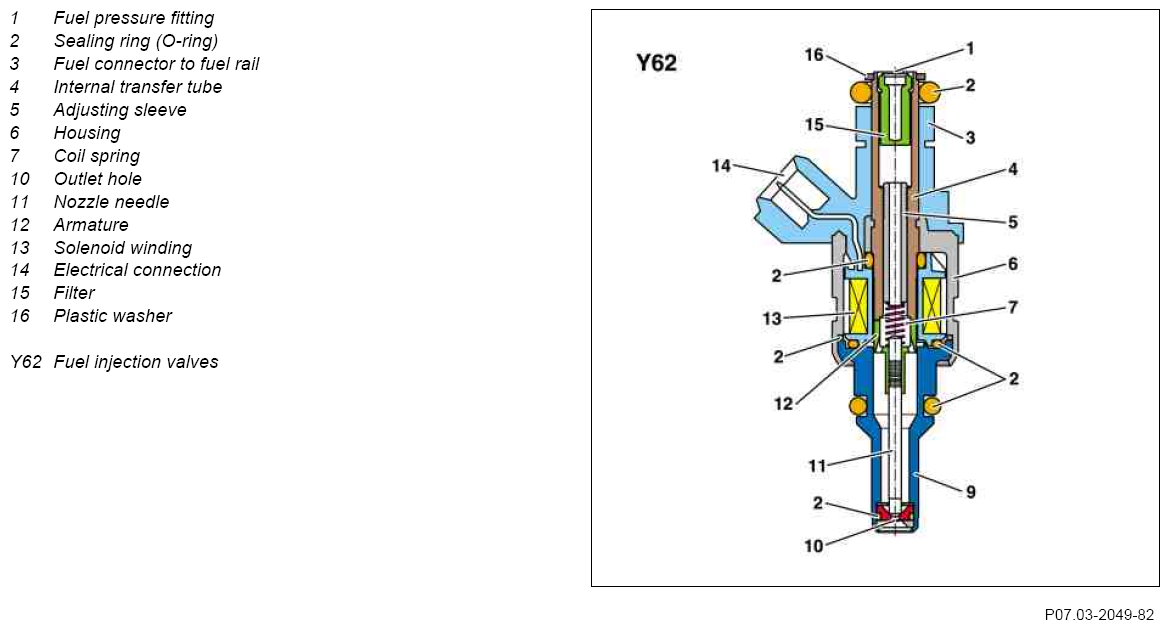

If solenoid winding (13) is energized, the Nozzle needle (11) is raised by solenoid armature (12) about 0.1 mm against the force of coil spring (7).
The fuel escapes through an outlet hole (10) and is sprayed onto the intake valves in a finely atomized spray.
The fuel injection valves (Y62) are actuated accordingly through electrical ground pulses by the ME-SFI [ME] control unit (N3/10). The voltage supply takes place from "circuit 87 M".
