Install Repair Bolt

When specification are beyond tolerance and repair bolt is called for, proceed with bolt replacement. See Fig 1 and Fig 2 .

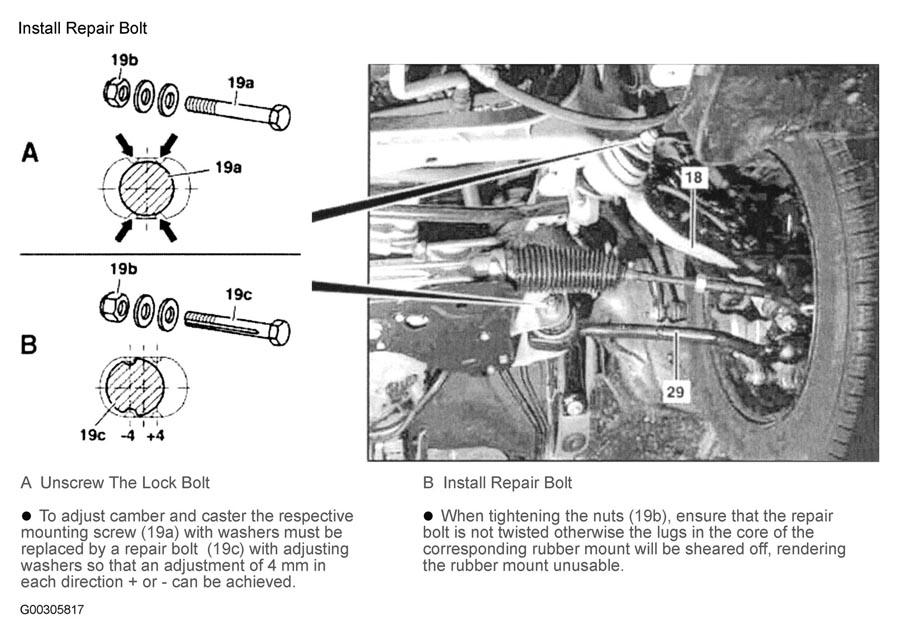

Fig 1: Installing Repair Bolt (1 Of 2)
G00305817Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

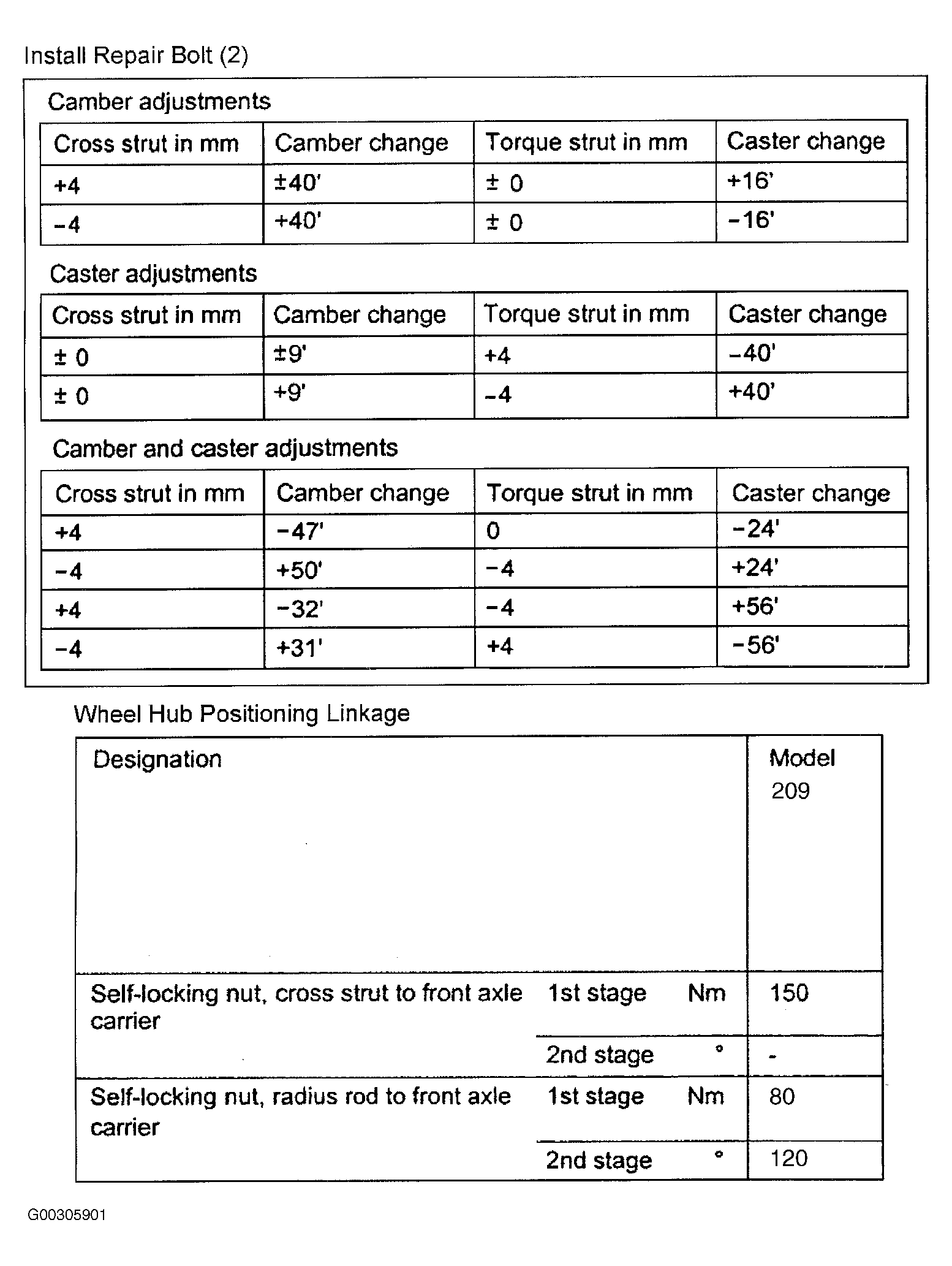

Fig 2: Installing Repair Bolt (2 Of 2)
G00305901Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
