Front SAM Control Unit With Fuse And Relay Module Connector End View (N10/1)

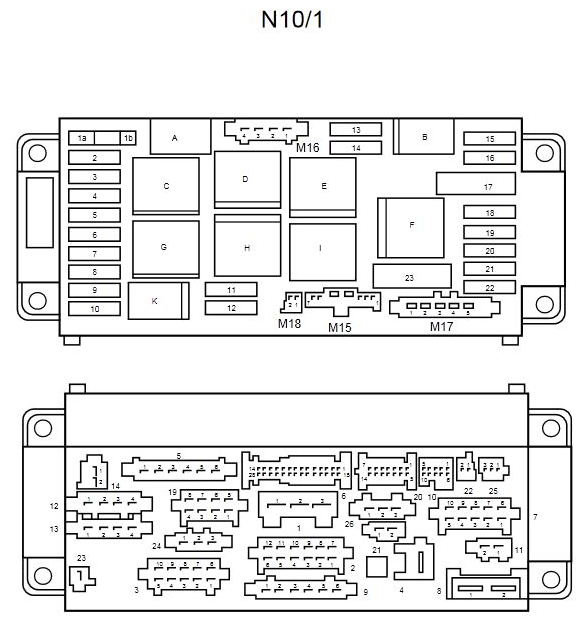

Fig 1: Front SAM Control Unit With Fuse And Relay Module Connector End View (N10/1)

G11070740

Courtesy of MERCEDES-BENZ USA
