Wire Routing

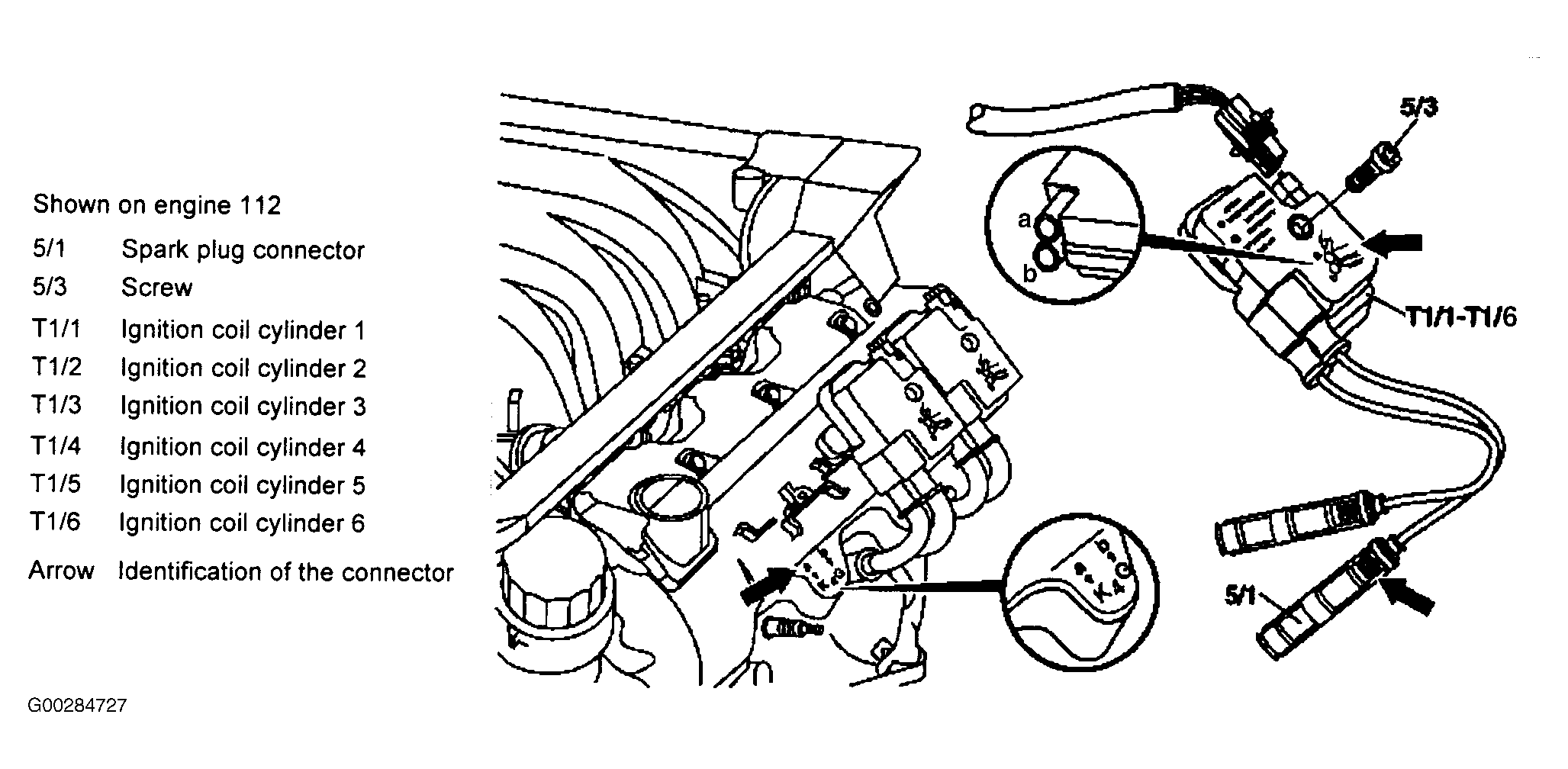

Observe identification of connector (Arrow) on the cylinder head cover and ignition coil cylinder 1-6 for corresponding spark plug connector (5/1). See Fig 1.

Fig 1: Identifying Sparkplug Wire Routing
G00284727Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
