Power windows (PW [EFH]) function - GF72.29-P-0003KA: Notes
MODELS 208.435 /444 /445 /447 /448 /465 /470

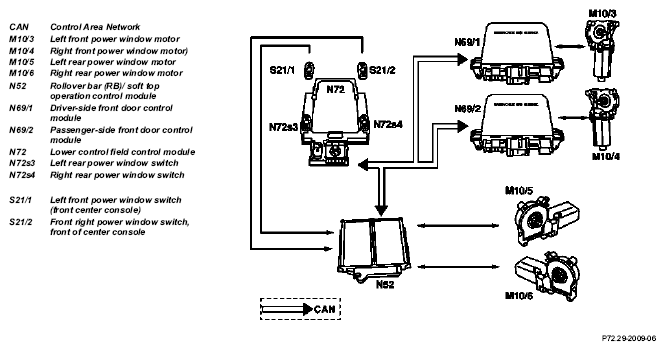

Networking of components
The power windows can be operated as follows:
- The rear side windows are operated with the aid of the left rear power window switch (N72s3) and rear right power window switch (N72s4) , the front side windows are operated with the left front power window switch, front center console (S21/1) and right front power window switch, front center console (S21/2) .
- Central closing/opening of all side windows by pressing the softtop operation switch (S84) twice within 0.5 s.
This function is only performed if the soft top is almost completely open or closed.
- Convenience closing/opening of the vehicle with the aid of the infrared remote control .
- Via the passenger's door lock (only
).
Lock-up of power window operation
During soft-top operation (opening, closing) manual operation of the power windows is not possible.
Continuous operation
To protect the components of the rear power windows the operating time is monitored. With uninterrupted operation of switches N72s3 or N72s4 the roll bar (RB)/soft-top operation control module (N52) automatically switches off the corresponding power window motor after 25 s.
During soft-top operation, the N52 automatically activates the power windows.
To prevent load peaks and to ensure optimum running-in of the windows in the gaskets, the individual power windows are actuated offset in time for convenience closing/opening and during soft-top operation.
