Refrigerant compressor, location - GF83.55-P-2100-01GH

WARNING: This page is about a different variant/trim than selected.

Illustrated up to 31.08.01

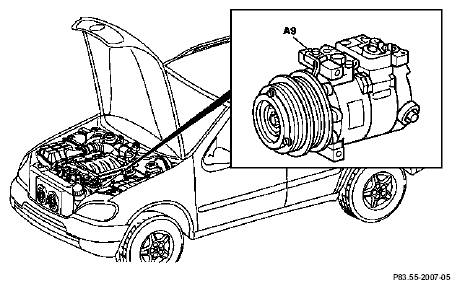

The refrigerant compressor (A9) is flanged to the engine at front left

Fig 1: Identifying Refrigerant Compressor
G04608967
