Section 11 (Climate Control -- Basic Knowledge -- 209 Chassis)
>>
Basic Knowledge
>>
Refrigerant compressor, location/task/design/function - GF83.55-P-2100P
>>
Refrigerant compressor, design - GF83.55-P-2100-03P
Refrigerant compressor, design - GF83.55-P-2100-03P
WARNING:
This page is about a different variant/trim than selected.

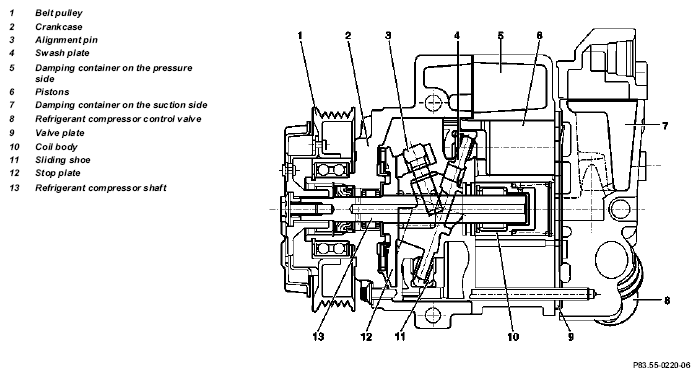

Fig 1: Identifying Refrigerant Compressor Components
