Pressure relief valve, location / task / function - GF83.55-P-2104P: Notes

WARNING: This page is about a different variant/trim than selected.

ENGINE 111, 112, 113, 271, 272, 611, 612, 642, 646 in MODEL 203.0 /2 with CODE (580) Air conditioning (or Tempmatic for USA) with CODE (580) Automatic air conditioning with CODE (581) Automatic air conditioning with CODE (581) Comfort automatic air conditioning

ENGINE 111, 112, 271, 272, 611, 612, 646 in MODEL 203.7 with CODE (580) Air conditioning (or Tempmatic for USA) with CODE (580) Automatic air conditioning with CODE (581) Automatic air conditioning with CODE (581) Comfort automatic air conditioning

ENGINE 112.942 /970, 113.942 /965 /981, 612.963, 628.963 in MODEL 163 as of 1.9.01 with CODE (580) Automatic air conditioning

ENGINE 112, 113, 271, 272, 273, 612, 642, 646 in MODEL 209.3

ENGINE 112, 113, 271, 272, 273, 642 in MODEL 209.4

Shown on model 203

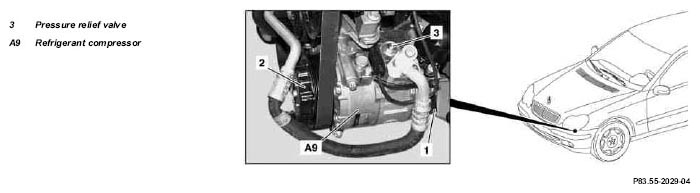

Fig 1: Identifying Pressure Relief Valve And Refrigerant Compressor - Shown On Model 203

Pressure relief valve, position	The pressure relief valve (3) is located on the refrigerant compressor (A9).
Pressure relief valve, task	The pressure relief valve (3) serves to protect the refrigerant circuit from damage caused by excess pressure.
Pressure relief valve, function		GF83.55-P-2104-02P
