Blower regulator, location / task / function - GF83.10-P-2141Q
WARNING: This page is about a different variant/trim than selected.
Models 209.3 /4

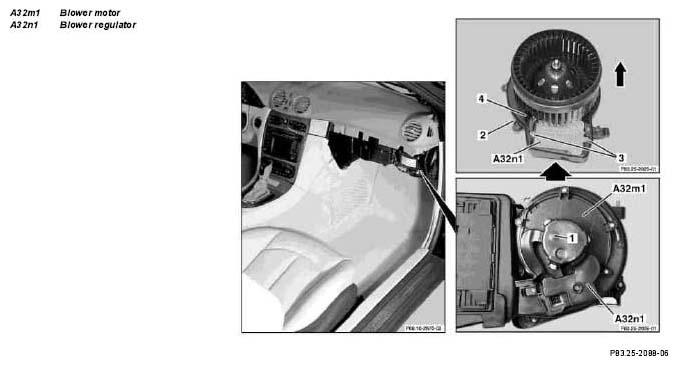

| Blower regulator, location | The blower regulator (A32n1) is located under the glove compartment on the right of the AC housing and is attached to the blower motor (A32m1). | ||
| Blower regulator, task | The blower regulator (A32n1) controls the blower motor's (A32m1) voltage supply depending upon each respectively set blower stage. | ||
| Blower regulator function | GF83.10-P-2103-01Q |
