ASR/SPS Control Module Connector End View (N47-1)

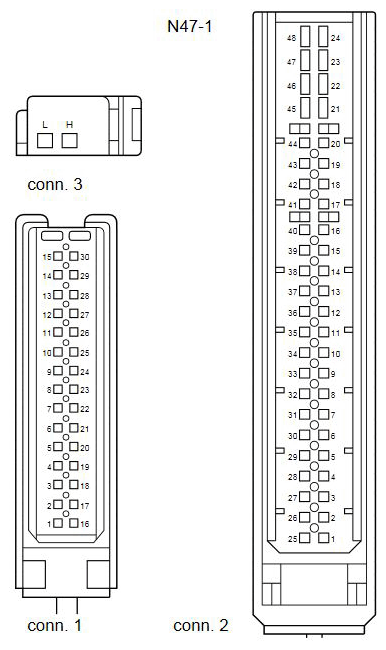

Fig 1: ASR/SPS Control Module Connector End View (N47-1)

G11070841

Courtesy of MERCEDES-BENZ USA
