Front seat adjustment motor group, location/function - GF91.29-P-2103LK

MODEL 170 with CODE (221b) Electrically adjustable driver and passenger seats

Illustrated on right seat

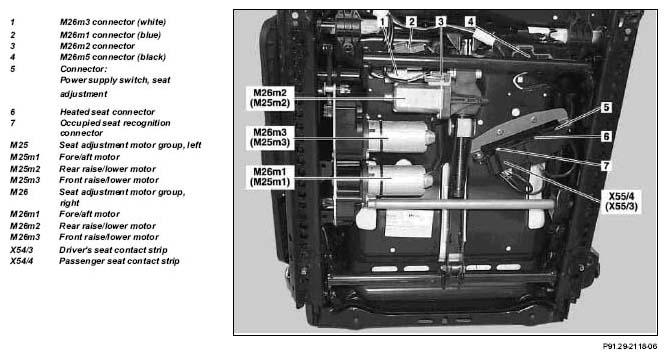

Fig 1: Identifying Front Seat Adjustment Motor Group Components - Illustrated On Right Seat (1 Of 2)
G04744642

Illustrated on right seat

The motors for the seat adjustment motor groups (M25, M26) are located in the seat subframe and in the backrest.

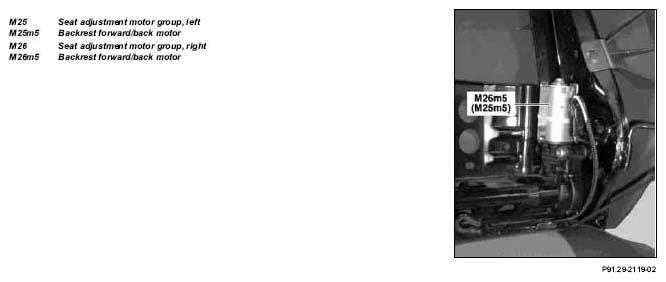

Fig 2: Identifying Front Seat Adjustment Motor Group Components - Illustrated On Right Seat (2 Of 2)
G04744643
  Front seat adjustment motor group, function The individual switches receive power directly from the corresponding seat adjustment switch (S22, S23). An installed temperature switch protects against overheating. A varistor is installed to minimize interference impulses.
