DTC 1517 - Replacement Of Air MATIC Compressor Unit (32.22/07)
Publication date: 1999-08-01Reference number: 32.22/07
DTC 1517 - REPLACEMENT OF AIR MATIC COMPRESSOR UNIT
TECHNICAL SERVICE BULLETIN
Reference Number(s): 32.22/07, Date of Issue:
August 1999
MODEL 220 - REPLACEMENT OF AIR MATIC COMPRESSOR UNIT WITH DTC C 1517
Model(s): 2000 Mercedes-Benz S 430, S 500
Group: 32 - Suspension System
Bulletin No.: P-S1-32.22/07
Date: August 1999
SERVICE INFORMATION

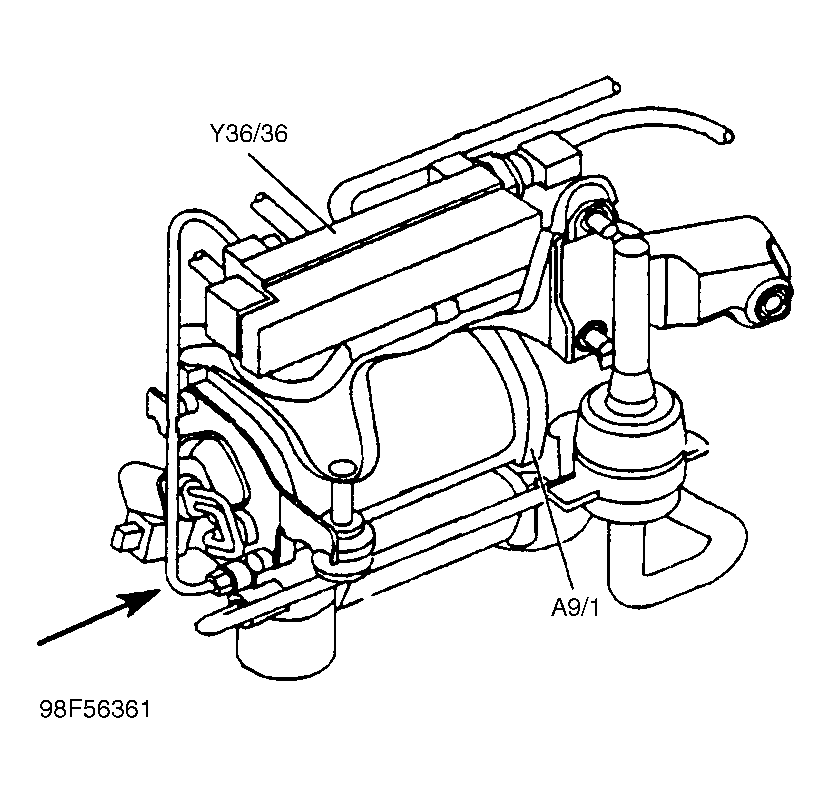

Should diagnosis of the AIR matic System indicate a DTC of 1517, please inspect the Air matic compressor unit (A9/1) (Fig. Fig 1 ), which is located in the engine compartment on the front right hand side for leaks. The Air matic compressor has no serviceable parts. If you have a leaking compressor, replace it with a "Q 15" or higher version. The "Q 15" version compressors have an improved sealing O-ring and a tighter tolerance on the output housing assembly thereby improving output. Following the compressor removal and replacement procedure noted below, be certain to retest the Air matic system.
REPLACEMENT PROCEDURE
- Inspect the air suspension compressor for leaks.
- If the unit is found to be leaking, replace with a "Q 15" or higher version. To avoid total pressure loss when removing and installing AIR matic compressor unit (A9/1), the level control valve (Y36/6) must remain connected to the pressure side of the AIR matic system. Disconnect only the pressure feed line from the level control valve to the compressor (arrow, Fig. Fig 1 ). For instructions on removing and installing the AIR matic compressor unit, refer to WIS AR32.22-P-2001.
- Retest AIR matic system.
CAUTION:
Allow the AIR matic pump to fully pressurize the AIR matic system BEFORE lowering the vehicle to the floor. Failure to do so will result in suspension damage.
PARTS INFORMATION
PARTS INFORMATION
| Qty. | Part Name | Part Number |
|---|---|---|
| 1 | AIR matic compressor without level control valve (Y36/6) | 220 320 01 04 |
IN CASE OF WARRANTY
WARRANTY INFORMATION
| Damage Code | Operation No. | Time | Model Indicator(s) |
|---|---|---|---|
| 32 671 04 | Test Op. Code: 32-7280 | 0.4 hrs. | M0 |
| " | Repl. Op. Code: 32-9531 | 0.7 hrs. | M0 |
