Telephone 25-Pin D-Sub Connector Modification (82.70/118)

Publication date: 1999-03-15
Reference number: 82.70/118

TELEPHONE 25-PIN D-SUB CONNECTOR MODIFICATION

TECHNICAL SERVICE BULLETIN

Reference Number(s): P-SI-MBNA-82.70/118, Date of Issue: March 15, 1999

MERCEDES-BENZ:	Model 220, Model Year 2000 (Vehicles Up To VIN A028066)
GROUP:	82 - Electrical System - Body

SUBJECT

MODEL 220

MODEL YEAR 2000 (VEHICLES UP TO VIN A028066)

TELEPHONE 25-PIN D-SUB CONNECTOR MODIFICATION

SERVICE INFORMATION

NOTE: This Service Information is provided as a supplement to Work Instructions no. 416 included in the Service Information P-SI-MBNA-82.64/116 describing the installation of CD-changer and cellular telephone (CTEL) system for model 220 vehicles.

Vehicles produced up to the above referenced VIN range may contain a vehicle cellular telephone harness in which the 25-pin D-Sub connector at the rear of the vehicle is improperly assembled. This improperly assembled connector prevents the 25-pin mating connector on the telephone "Y" cable from being connected due to improper alignment between the connector keying tabs.

WARNING: Due to the tolerances involved in harness assembly, DO NOT attempt to repair the vehicle side harness. Rotating the 25-pin connector in it's housing may result in immediate and/or latent damage to the small gauge wires used in the construction of the telephone harness and may cause complete D2B ring failure in the vehicle.

In order to install the telephone in an affected vehicle, perform the following rework:

Locate the 25-Pin "Y" cable in the telephone kit (p/n Q 6 82 0389).
Using a 3/32" (2.5mm) Hex wrench, remove the two screws (arrows, Fig 1 ) securing the "U" shaped metal bracket to the male 25-pin connector on the harness.

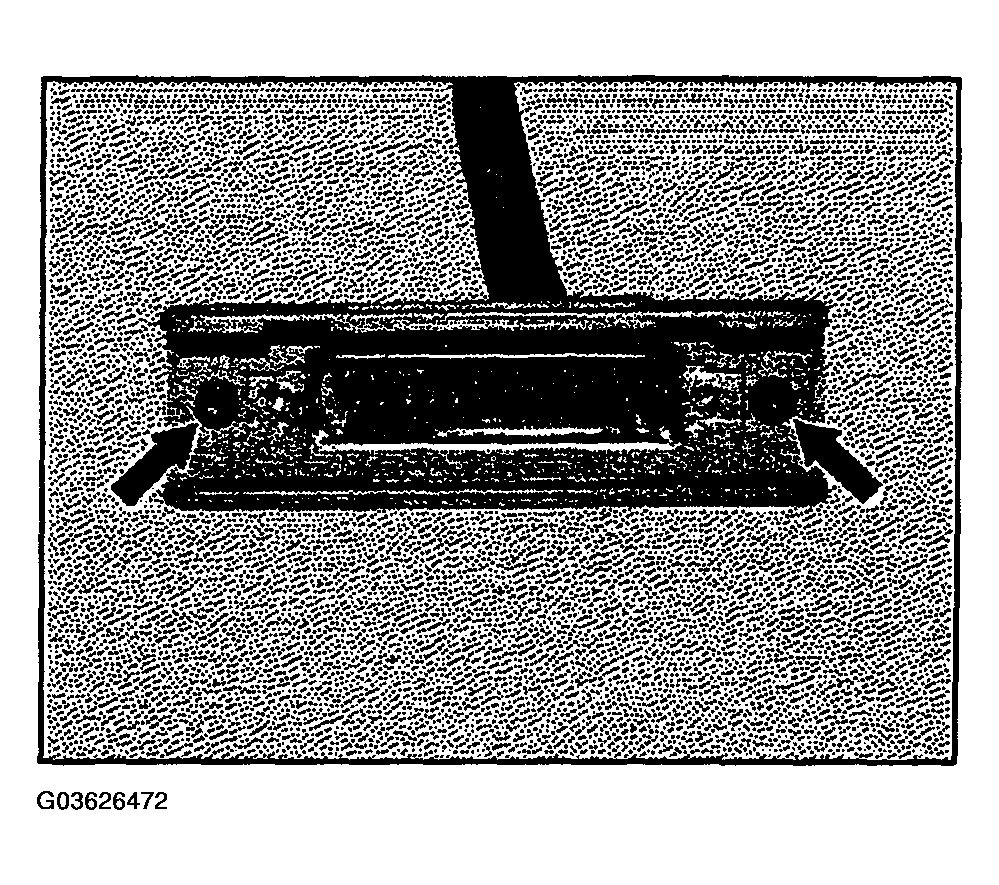

Fig 1: Screws Securing The "U" Shaped Metal Bracket
Rotate the bracket 180°on the connector. Refer to the molded "keys" on the connector bracket. After rotation the "keys" will be on the same side as the connector 12-pin row (arrows, Fig 2 ).

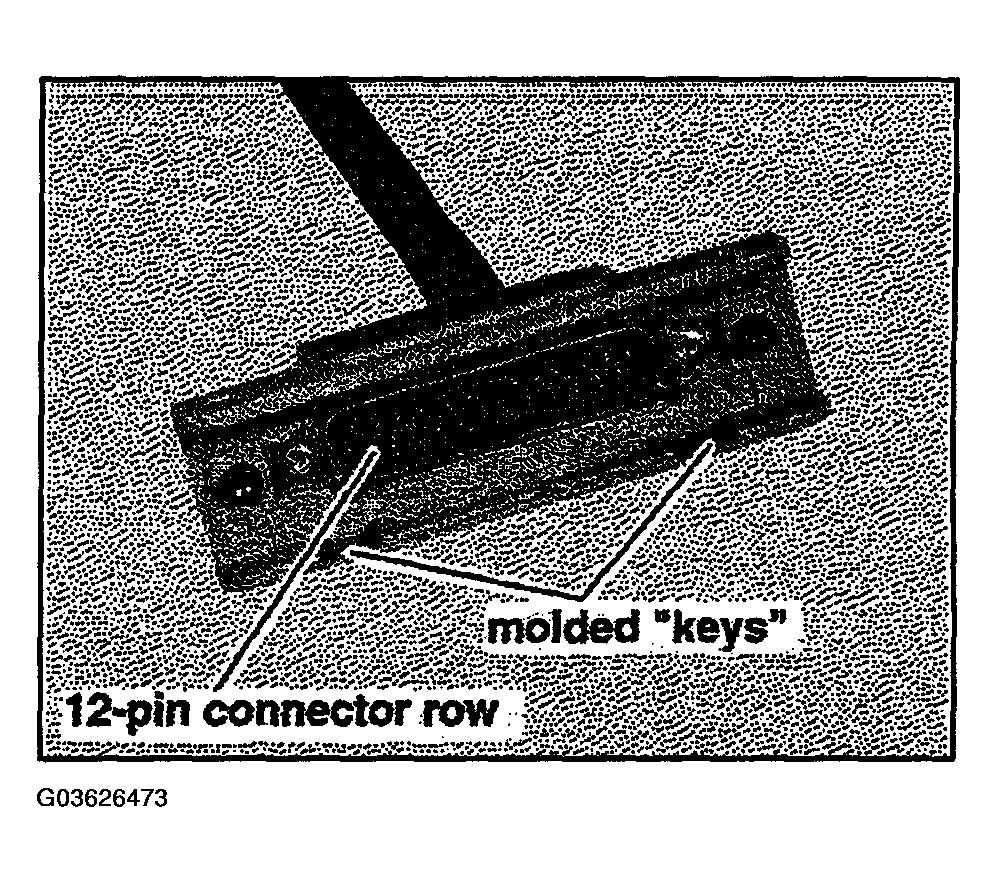

Fig 2: Bracket On Connector
Reinstall the two hex screws; DO NOT over tighten these screws.
Proceed normally with telephone install.

RECOMMENDED LABOR TIME

Description

Operation Number

Time (hrs.)

Model Indicator(s)

25-pin connector rework

54 0000

.1⁽¹⁾

⁽¹⁾	Additional to suggested time up to VIN end number A 028066.

This S.I. applies to the following models as of MY 1995 (earlier models may apply as well).

APPLICABLE MODELS

Model

1997

1998

1999

2000

SLK 230

C 220

C 230

C 280

C 36 AMG

C 43 AMG

CLK 320 Coupe

CLK 320 Cabriolet

CLK 430 Coupe

E 300 Diesel/Turbodiesel

E 320 Sedan

E 320 Wagon

E 320 Cabriolet

E 320 Coupe

E 420

E 430

E 500

E 55

SL 320

SL 500

SL 600

S 320 LWB ⁽¹⁾

S 320 SWB ⁽²⁾

S 420

S 430

S 350 Turbodiesel

S 500

S 600

CL 500 Coupe

CL 600 Coupe

⁽¹⁾	Long wheelbase

⁽²⁾	Short wheelbase
