ME-SFI start quantity control, function - GF07.61-P-3010M

ENGINE 275.950 in MODEL 215, 220

ENGINE 275.951 in MODEL 230

ENGINE 275.953 in MODEL 216, 221

ENGINE 275.954 in MODEL 230

ENGINE 275.980 in MODEL 215, 220

ENGINE 275.981 in MODEL 230

ENGINE 275.982 in MODEL 216, 221

ENGINE 285.950 in MODEL 240

ENGINE 285.980 in MODEL 240

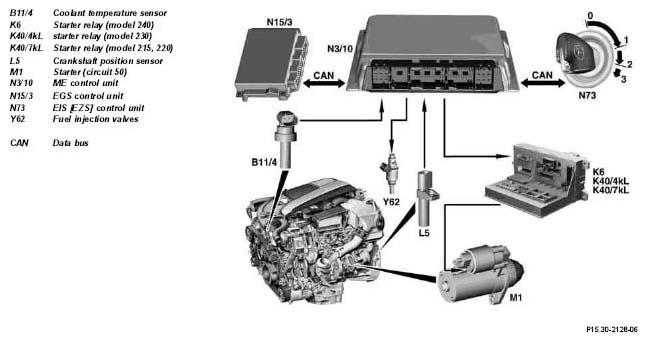

Shown on models 215, 220, 230, 240

In order to facilitate starting of the engine when cold, additional fuel must be injected during engine start operation, depending on the coolant temperature. The increased fuel injection quantity is achieved by extending the injection time.

Design/function

The start quantity control is dependent on:

• Start detection by means of CAN message "Circuit 50 ON"
• Coolant temperature
• Engine speed
• Engine off time
• Altitude level

The start quantity control is enabled after start recognition. It continues to remain activated until a temperature-related engine speed is exceeded.

The higher the coolant temperature, the lower is the start quantity enable by the ME-SFI control unit.

	ME-SFI control unit, location/task/design/function		GF07.61-P-5000M
	Crankshaft position sensor, location/task/design/function		GF07.04-P-4116M
	Coolant temperature sensor, location/task/design/function		GF07.04-P-5026M
	Throttle valve actuator, location/task/design/function		GF30.22-P-4101M
	Fuel injection valve, location/task/design/function		GF07.03-P-5004M
	Voltage supply of ME-SFI control unit, function	Model 215, 220, 240	GF07.61-P-5001M
		Model 216, 221	GF07.61-P-5001MS
		Model 230	GF07.61-P-5001R
