Intank fuel pump relay, location/task/design/function - GF47.20-P-4011MA: Notes
ENGINE 275.980 in MODELS 215, 220
ENGINE 275.981 up to 28.2.06 in MODEL 230
| Intank fuel pump relay location | Models 215, 220 | GF47.20-P-4011-01MA | |
| Model 230 | GF47.20-P-4011-01MB | ||
| Intank fuel pump relay, task | Actuates the intank fuel pump. | ||

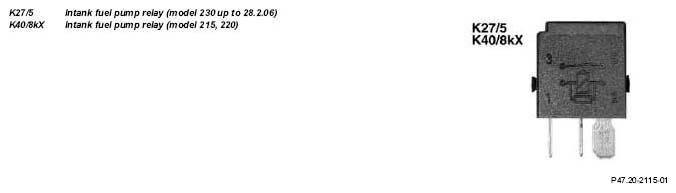

| Intank fuel pump relay, design | The intank fuel pump relay is a 4-pin plug relay | ||
| Intank fuel pump relay, function | When actuating through the fuel pump control unit (N118) with a ground signal, it closes the power contact and thus supplies the intank fuel pump with voltage. |
