Intank fuel pump relay, location/task/design/function - GF47.20-P-4011AM: Notes
ENGINE 113.991 in MODELS 215, 220
ENGINE 113.992 in MODEL 230
ENGINE 113.993 in MODEL 463
ENGINE 113.995 in MODEL 230
| Intank fuel pump relay location | Models 215, 220 | GF47.20-P-4011-01M | |
| Model 230 | GF47.20-P-4011-01R | ||
| Model 463 | GF47.20-P-4011-01GA | ||

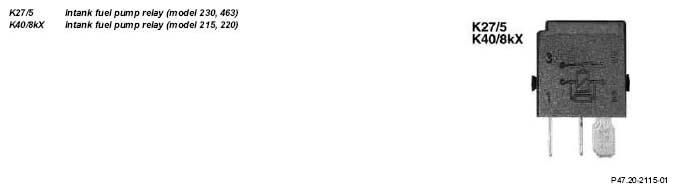

| Intank fuel pump relay, task | The intank fuel pump relay actuates the intank fuel pump (M3/1). | ||
| Intank fuel pump relay, design | The intank fuel pump relay is a 4-pin plug relay | ||
| Intank fuel pump relay, function | When actuating by means of the ME control unit (N3/10) using a ground signal, it closes the power contact and thus supplies the intank fuel pump with voltage from "circuit.87" |
