Fuel tank, location/design/function - GF47.10-P-3000KB: Notes
MODELS 215, 220 with ENGINE 275.980
MODEL 230 with ENGINE 275.981

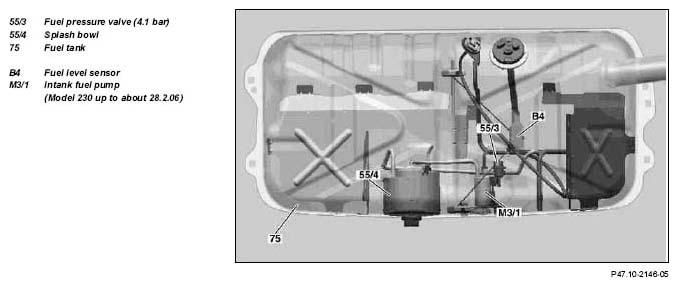

Shown on model 215, 220
| Fuel tank position | The fuel tank is located in the trunk above the rear axle. | ||
| Fuel tank design | The fuel tank is made out of sheet steel. Both halves of the tank are welded together. The components in the fuel tank (e.g. the intank fuel pump) cannot be removed. Replace complete fuel tank! |
||
| Fuel tank function | GF47.10-P-3000-01KB |
