Electronic selector lever module ESM control module, task - GF27.19-P-5138-02GI
Transmission 722.6 in model 163 with touch shift

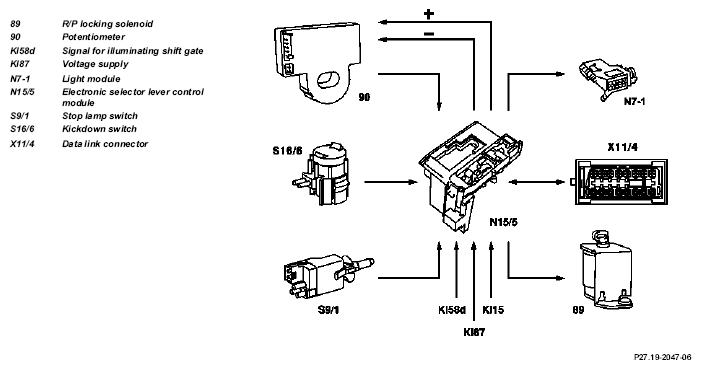

Input and output signals
CAN data bus
Task
The electronic selector lever module control module (N15/5) receives digital and analog input signals, converts these signals and controls various components or transfers information to various control module via CAN.
In selector lever position "D" lateral touch movements in the"+" or"-" direction are detected by the electronic selector lever module control module (N15/5) via two contacts and are conveyed to the ETC control module (N15/3) via the engine compartment bus.
The selector lever positions are determined by the slider position of the potentiometer and transferred to the electronic selector lever module control module 90(N15/5).
The selection diagram symbols (shift pattern display) are illuminated by means of LEDs when low beam is switched on.
Input signals:
- Selector lever position (from potentiometer (90))
- Touch button +/-
- Voltage supply (terminal 87)
- Power supply for reverse lamp (terminal 15)
- Signal for shift gate illumination (terminal 58d)
- Kickdown switch (S16/6)
- Stop light switch (S9/1)
Input and output signals:
- Datalink connector (X11/4)
Output signals:
- R/P locking solenoid (89)
- Power supply and ground for potentiometer
- Reverse lamp (via the light module (N7-1))
Via the engine compartment bus, there are connections to the:
- ETC [EGS] control module (N15/3)
- Traction system control module (N47)
The following information is received:
Traction system control module (N47)
- Rear right wheel speed
- Rear left wheel speed
The following information is sent:
ETC [EGS] control module (N15/3)
- Selector lever position
- Kickdown switch (S16/6)
- Touch button +/-
