Remove/install front seat frame trim - AR91.10-P-1200GH

MODEL 163.113 /136 /154 /157 /172 with CODE (221b) Electrically adjustable driver and passenger seat

MODEL 163.128/174/175

Shown on right front seat

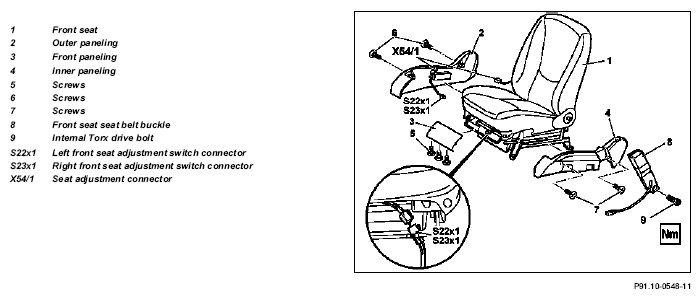

Fig 1: Identifying Front Seat Frame Trim Components

G04609337

	Remove/install
1.1	Remove front seat	Only necessary when removing the inner paneling (4).	AR91.10-P-1000GH
2	Unscrew screws (5) from the front paneling (3)
3	Pull down the front paneling (3) approx. 1 cm as far as the stop and remove forwards
4	Remove electrical line from the clips on the front paneling (3)
5.1	Disconnect left front seat adjustment switch connector (S22x1) or right front seat adjustment switch connector (S23x1) at front seat frame	Up to 08/98.
6	Unscrew screws (6) from outer paneling (2)
7	Remove outer paneling (2)
8.1	Disconnect left front seat adjustment switch connector (S22x1) or right front seat adjustment switch connector (S23x1) from seat adjustment switch unit As of 09/98.
9.1	Separate seat adjustment connector (X54/1) from seat adjustment switch unit	Not fitted with memory switch for left electrically adjustable front seat, code 241 or with memory switch for right electrically adjustable front seat, code 242a.
10	Remove electrical line from the clips on the outer paneling (2)
11	Unscrew screws (7) from inner paneling
12	Remove inner paneling (4)
13	Install in the reverse order
