Rear Side Airbag - Location/Task/Design/Function - GF91.60-P-4015B
Models 163 as of 1.12.99 with code (293) left and right rear side airbags

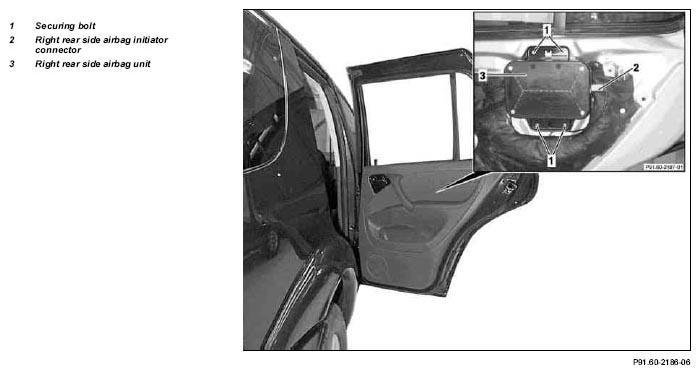

Illustrated on right side of vehicle
| Rear side airbag - location | Behind door trim for left and right rear doors | ||
| Rear side airbag - Task | The left/right rear side airbag serves to protect rear seat occupants from upper body and head injuries in the event of a side-collision affecting the door, B-pillar or C-pillar areas. It is deployed at the same time as the front side airbag. As of 1.09.01: The left side airbag and window airbag sensor (A53/1) and the right side airbag and window airbag sensor (A53/1) and at the same time the left rear window airbag and the right rear window airbag are deployed. |
||
| Rear side airbag - design | The rear side airbag modules consist of an inflator, a detonator and an airbag. The airbags are made of an uncoated and recyclable polyamide fabric and have a volume of 16 liters when inflated. When inflated they have a capacity of 16 liters . | ||
| Rear side airbag - Function | GF91.60-P-4015-02B |
