Left front seat adjustment control module, with memory, location - GF91.29-P-2106-01GH

Model 163 with codes 241, 242a

View of the underside of left front seat

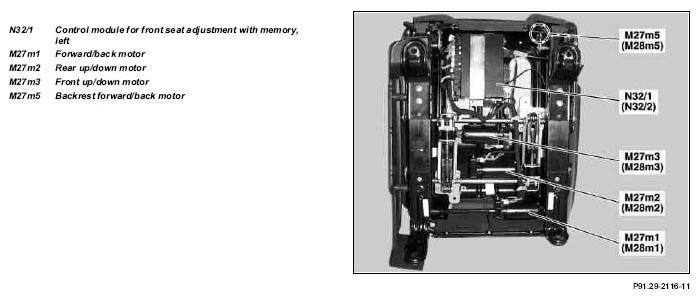

Fig 1: Identifying Left Front Seat Adjustment Control Module With Memory Components Location
G04609211
