Rear nozzle function - GF83.10-P-2111-01GI
Function

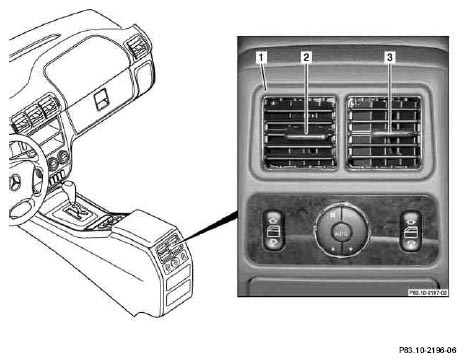

The air flow direction of the rear nozzle (1) can be directed up, down, left or right as required using two individually-adjustable slatted shutters (2, 3).
The air distribution between the rear compartment and the rear footwell can be adjusted by operating the rear compartment air distribution switch (
) and the rear air distribution flap actuator motor (M2/21) that it actuates.
The quantity of air can be adjusted by operating the blower button (
) and the rear blower motor (M2/1) that it actuates.
Operating the Auto button (
) causes the AAC push-button control module (N22) to regulate the air distribution and air quantity.
