Defroster vent flap actuator motor, location/task/function - GF83.10-P-2175GI
Model 163 as of 1.9.01 with code (580a) Automatic air conditioning

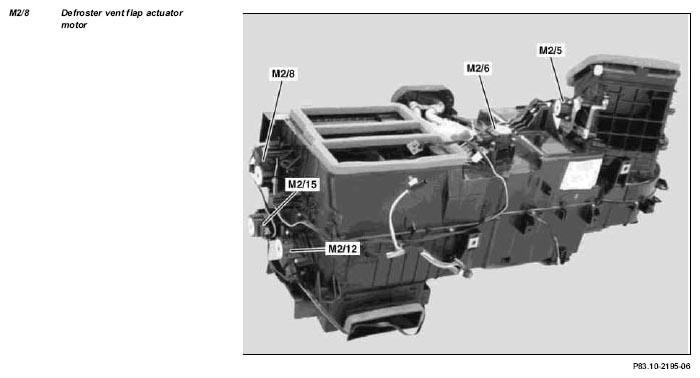

| Defroster vent flap actuator motor, location | The defroster vent flap actuator motor (M2/8) is located at the left side of the air conditioner housing. | ||
| Defroster vent flap actuator motor, task | The defroster vent flap actuator motor (M2/8) operates the defroster vent flaps for air flow control to the windshield defroster vent and side window defroster vents. | ||
| Defroster vent flap actuator motor, function | GF83.10-P-2175-01GI |
