Center nozzle vent air temperature sensor, location/task/function - GF83.57-P-2116GI
MODEL 163 as of 1.9.01 with CODE (580a) Automatic air conditioning

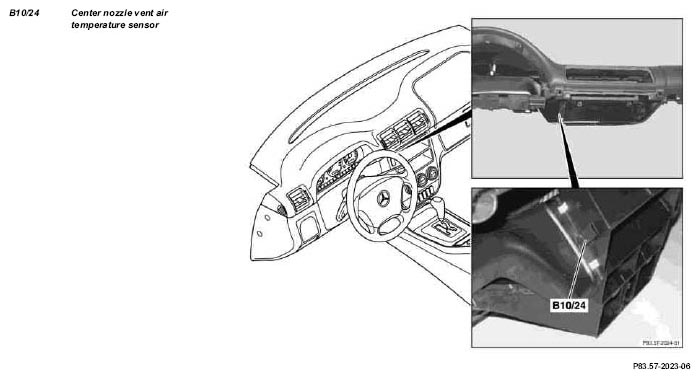

| Center nozzle vent air temperature sensor, location | The center nozzle vent air temperature sensor (B10/24) is located to the left of the air duct's center nozzle below the instrument panel. | ||
| Center nozzle vent air temperature sensor, task | The center nozzle vent air temperature sensor (B10/24) records the temperature of the air flowing out of the center nozzle and sends it to the AAC push-button control module (N22). | ||
| Center nozzle vent air temperature sensor, function | The vent air's recorded temperature value is compared by the AAC push-button control module (N22) with the setting in the temperature selector wheel whereupon it authorizes a corresponding adjustment to the blending air flap to be made depending upon the result. |
