ME-SFI control module design - GF07.61-P-5000-03F
ME1.0

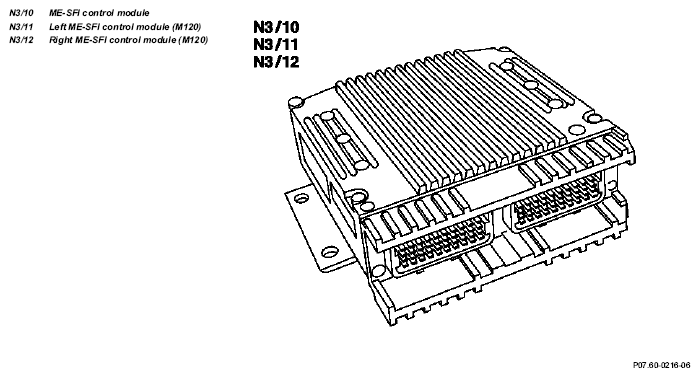

Design
Aluminum die-cast housing, not watertight. Installed in watertight control module box.
Certain control module boxes with cooling blower.
Two control modules are installed in engine 120. The left ME-SFI control module is connected at connector 45 to ground as a distinction.
Connections of ME 1.0:
Two connectors (engine side and vehicle side) represent the link to the other components.
