IFI limiting full throttle injected quantity function - GF07.12-P-3006HA

ENGINE 605.960 in MODEL 202.128 as of 1.4.96, 202.188

ENGINE 605.912 in MODEL 210.010 as of 1.6.96, 210.210 /610

ENGINE 606.912 in MODEL 210.020 as of 1.6.96 with CODE (491) U.S. version

ENGINE 606.962 in MODEL 210.025 /225

ENGINE 606.961 in MODEL 140.135

ENGINE 605.962 in MODEL 210.015 /215

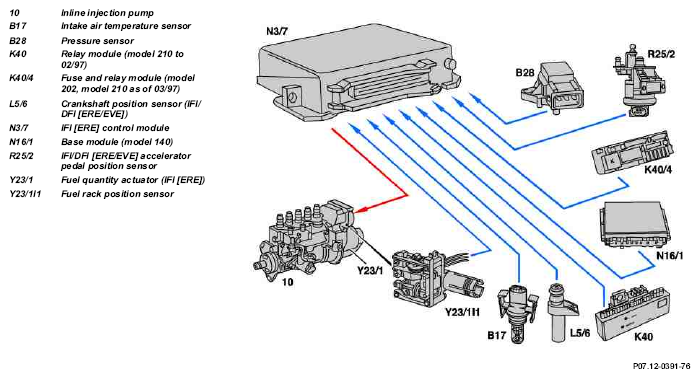

Fig 1: Identifying IFI Limiting Full Throttle Injected Quantity Function

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Task

To limit the injection quantity at full load.

Function

The IFI [ERE] control module (N3/7) receives the required signals from the components listed below and limits the fuel quantity via the fuel quantity actuator (IFI [ERE]) (Y23/1) and the control rod. This prevents bursts of smoke from being produced during acceleration.

Malfunctions in the following components and subsystems further reduce the full-load injection quantity:

Crankshaft position sensor (L5/6)
Accelerator pedal position sensor (R25/2)
Electrohydraulic shutoff actuator (IFI [ERE]) (Y1/1)
Exhaust gas recirculation (EGR [ARF]) control
Intake air pressure control

Fuse and relay module location/task/function	Model 202 Model 210 as of 03/97	GF07.13-P-3141H
Relay module location/task/design/function	Model 210 to 02/97	GF07.13-P-3101H
IFI [ERE] control module location/task/function		GF07.12-P-3102HA
Crankshaft position sensor location/task/design/function		GF07.04-P-4116H
Fuel quantity actuator (IFI [ERE]) location/task/function		GF07.12-P-3131H
Fuel rack position sensor location/task/design/function		GF07.04-P-5022H
Accelerator pedal position sensor location/task/design/function		GF07.04-P-5029H
Intake air temperature sensor location/task/design/function		GF07.04-P-2100H
Pressure sensor location/task/design/function		GF07.04-P-5014H
