Exhaust gas recirculation lifting sender location/task/function - GF07.04-P-5025H

ENGINE 606.912 in MODEL 210.020 with CODE (491) U.S. version

ENGINE 606.961 in MODEL 140.135

Shown on model 210.020

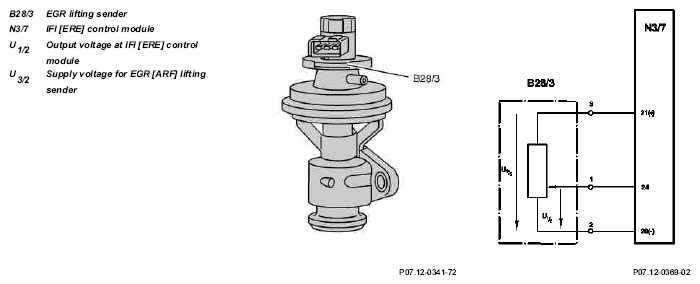

Fig 1: Identifying Exhaust Gas Recirculation Lifting Sender With Function - Shown On Model 210.020

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Exhaust gas recirculation lifting sender location	Integrated into the EGR [ARF] valve
	Engine 606.912	GF07.04-P-5025-01H
	Engine 606.961	GF07.04-P-5025-01HA
Exhaust gas recirculation lifting sender task	To measure the amount of exhaust gas recirculated
Exhaust gas recirculation lifting sender function	The exhaust gas recirculation valve of the EGR [ARF] lifting sender (B28/3) is mechanically coupled to a potentiometer. By reading the voltage ratio U 3/2 : U 1/2 the IFI [ERE] control module (N3/7) can calculate the lift of the exhaust gas recirculation valve and thus the amount of exhaust gas recirculation
