Replacing knock sensor - AR15.12-P-2183GA

ENGINE 111.960 as of 1.12.94 in MODEL 124

ENGINE 111.977 in MODEL 163

ENGINE 111.943 /946 /973 in MODEL 170

ENGINE 111.921 /945, 111.961 as of 1.12.94, 111.974 in MODEL 202

ENGINE 111.945 /975 in MODEL 208

ENGINE 111.947 /970 in MODEL 210

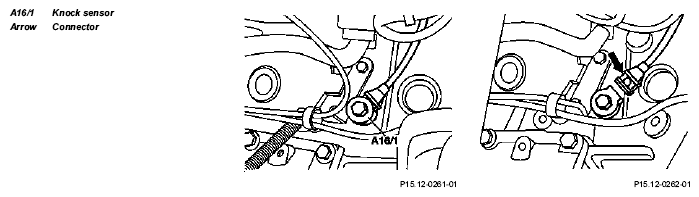

Fig 1: Identifying Knock Sensor And Connector - Engine 111.921 /945, 111.961 As Of 1.12.94, 111.974 In Model 202
G04715153
Fig. item, etc. Work instructions
A16/1 Knock sensor
Arrow Knock sensor connector Unplug. Compress retaining clip for this step
